FS#1125 - Property Editor / Total angle of an arc

Attached to Project: QCAD
Opened by Husky (Husky) - Thursday, 20 November 2014, 09:16 GMT+1
Last edited by Andrew (andrew) - Sunday, 23 November 2014, 14:48 GMT+1
Task Type Feature Request
Category QCAD (main)
Status Closed
Assigned To Andrew (andrew)
Operating System All
Severity Low
Priority Normal
Reported Version 3.7.1
Due in Version Undecided
Due Date Undecided
Percent Complete 100%
Votes 1
Private No

Details

Hi,

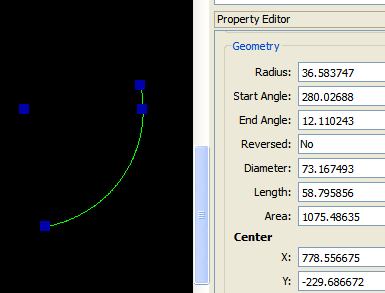

if I have an arc and use the Property Editor to get the Geometrical information I always miss the total angle of the arc.

Yes - I have the Start and the End angle but to get the Total angle I have to draw construction lines to be able to use the Angular Dim or Info angle tool /or I need to use a pocket calculator ...

It would be nice to have this calculated by QCAD - I assume it can’t be that difficult to design an extra field which will display, based on the start and end angle, the total angle of an arc.

What do you think?

This task depends upon

Closed by  Andrew (andrew)
Sunday, 23 November 2014, 14:48 GMT+1
Reason for closing:  Implemented
Additional comments about closing:  https://github.com/qcad/qcad/commit/3b09 a594477dc4ca055492801d3cf221af8ac83c
Comment by Husky (Husky) - Friday, 28 November 2014, 09:05 GMT+1

Very nice - thank you! :-)
