FS#1615 - Decimal point of dimensions shown as '?', preferences page throws exception

Attached to Project: QCAD
Opened by Sam Kang (samkang) - Wednesday, 05 July 2017, 02:31 GMT+1
Last edited by Andrew (andrew) - Wednesday, 12 July 2017, 14:44 GMT+1
Task Type Bug Report
Category QCAD (main)
Status Closed
Assigned To Andrew (andrew)
Operating System Mac OS X (All)
Severity Low
Priority Normal
Reported Version 3.17.3
Due in Version Undecided
Due Date Undecided
Percent Complete 100%
Votes 0
Private No


First. I am not able to find OS selection for macOS Sierra so I choose Mac OS X.

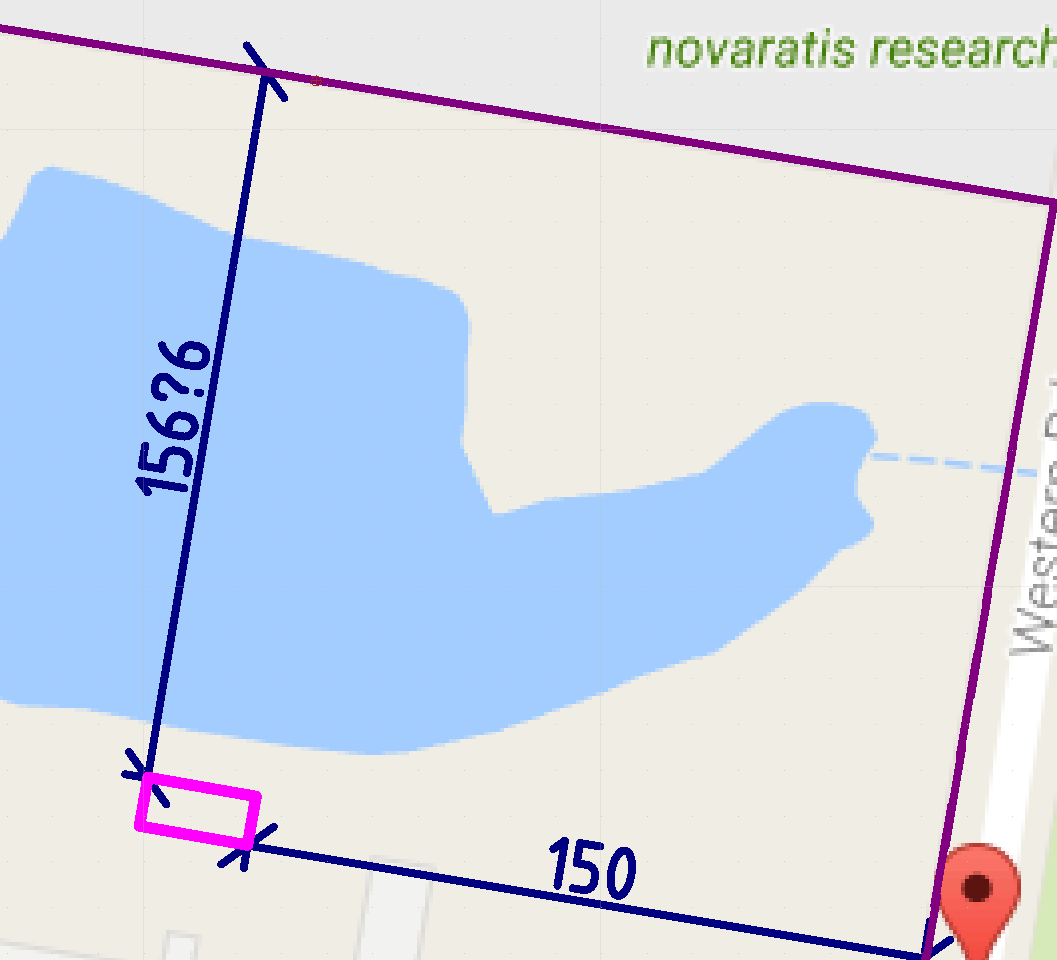

I noticed that when I opened my drawing, I saw dimensions on drawing showed ‘156?6’ instead of ‘156.6’ in prior version I had installed. Probably in 3.16.5

So I opened Dimension Settings page to review and found when opening Dimension Settings under Drawing Preferences,

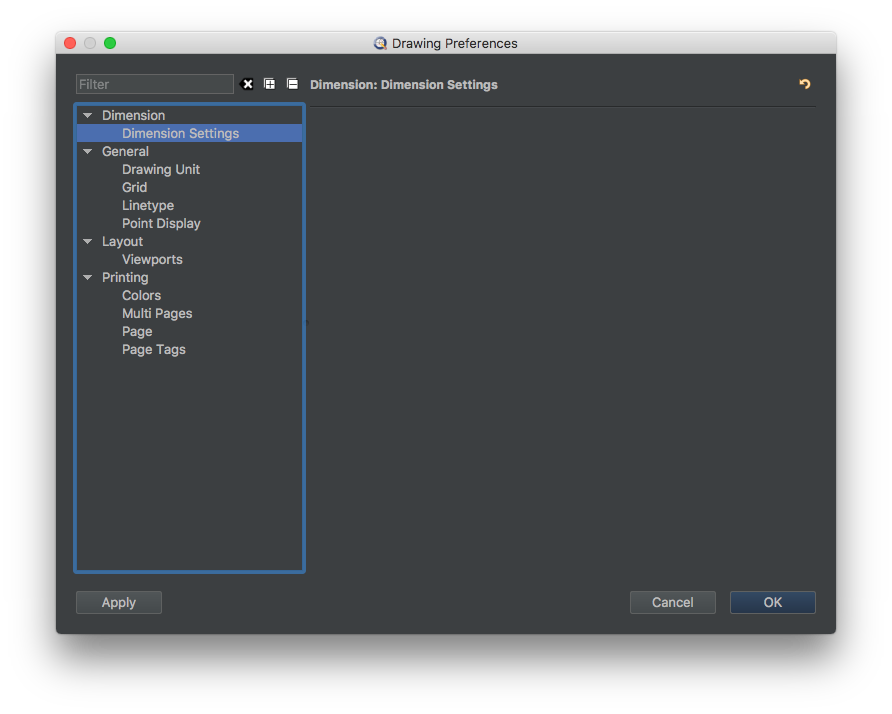

Dimension Settings does not show. It remains blank.

Then I clicked on other settings menu item from left and clicked back on the Dimension Settings I was able to see the Dimension setting.
However; when I closed the dialog and try to open the Dimension Settings again, I am not able to see the settings page at all. Just blank. I can see other settings page fine.

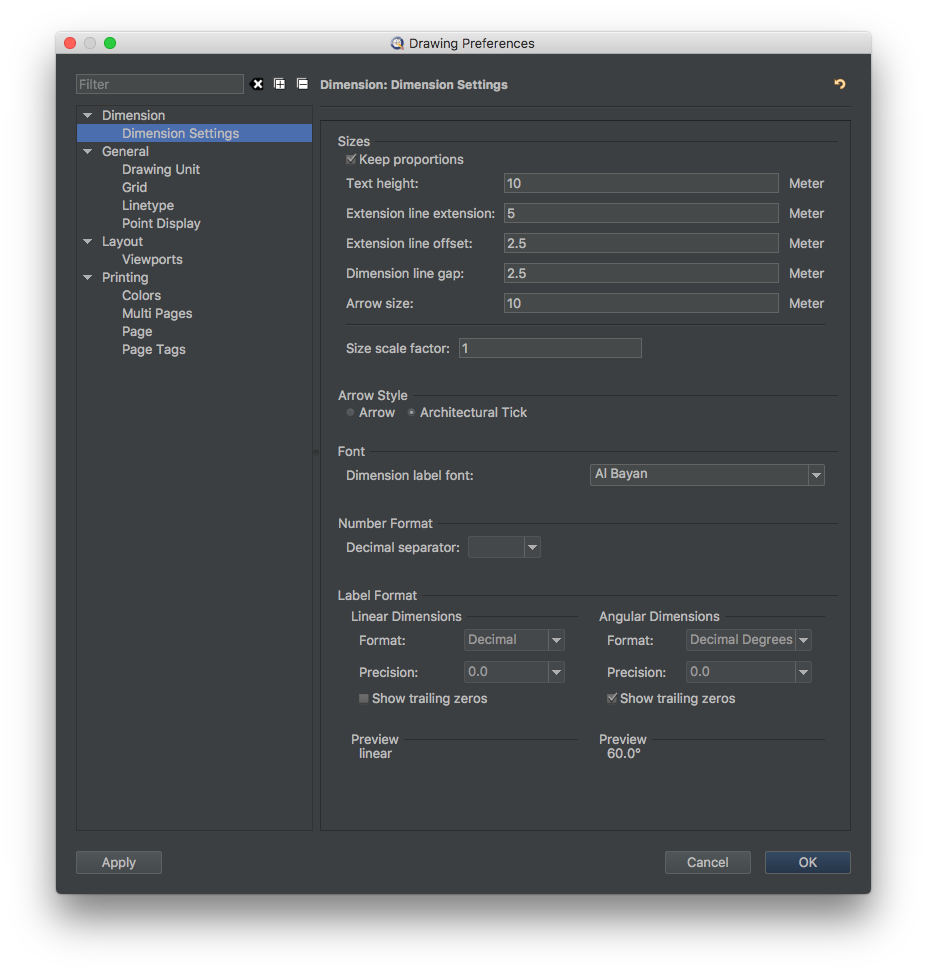

One time when I was able to see the Dimension Setting, I noticed that the Separator symbol was blank. So I updated that to ‘.’ and hit OK.
The drawing still shows ‘156?6’ instead of expected ‘156.6’.

It seems the separator symbol is not being saved for some reason.

This task depends upon

Closed by  Andrew (andrew)
Wednesday, 12 July 2017, 14:44 GMT+1
Reason for closing:  Fixed
Comment by Sam Kang (samkang) - Wednesday, 05 July 2017, 02:37 GMT+1

I found work around to show the Dimension Setting page;
1) open Drawing Preferences
2) Click on 'Page Tags'
3) Click on 'Dimension Settings'

However, I am not able to apply any changes made to Dimension Settings. I tried changing Decimal separator , Font, etc but doesn't seem to apply when I click OK or Apply button

Comment by Andrew (andrew) - Wednesday, 05 July 2017, 08:43 GMT+1

Please attach or e-mail your drawing file (DXF,DWG), thanks.
