QCAD Bugtracker

  • Status Closed
  • Percent Complete
    100%
  • Task Type Bug Report
  • Category QCAD (main)
  • Assigned To
    Andrew
  • Operating System All
  • Severity Low
  • Priority Very Low
  • Reported Version 3.21.2
  • Due in Version Undecided
  • Due Date Undecided
  • Votes 2
  • Private
Attached to Project: QCAD Bugtracker
Opened by Johan Persson - 30.07.2018
Last edited by Andrew - 31.07.2018

FS#1792 - Dimension > Angular: transformations broken

(I originally described the problem in the forum: https://qcad.org/rsforum/viewtopic.php?f=33&t=5721 )
(The problem was also reproduced by user “Husky” so it not installation specific.)

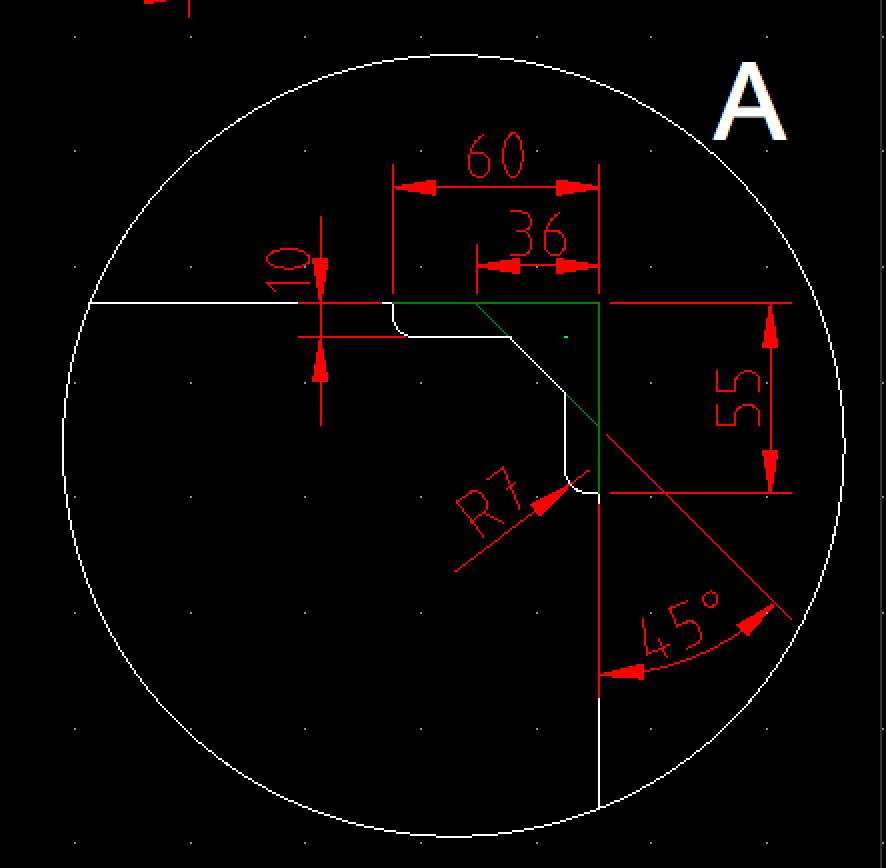

I have a model where one of the details is as shown in attachment 1

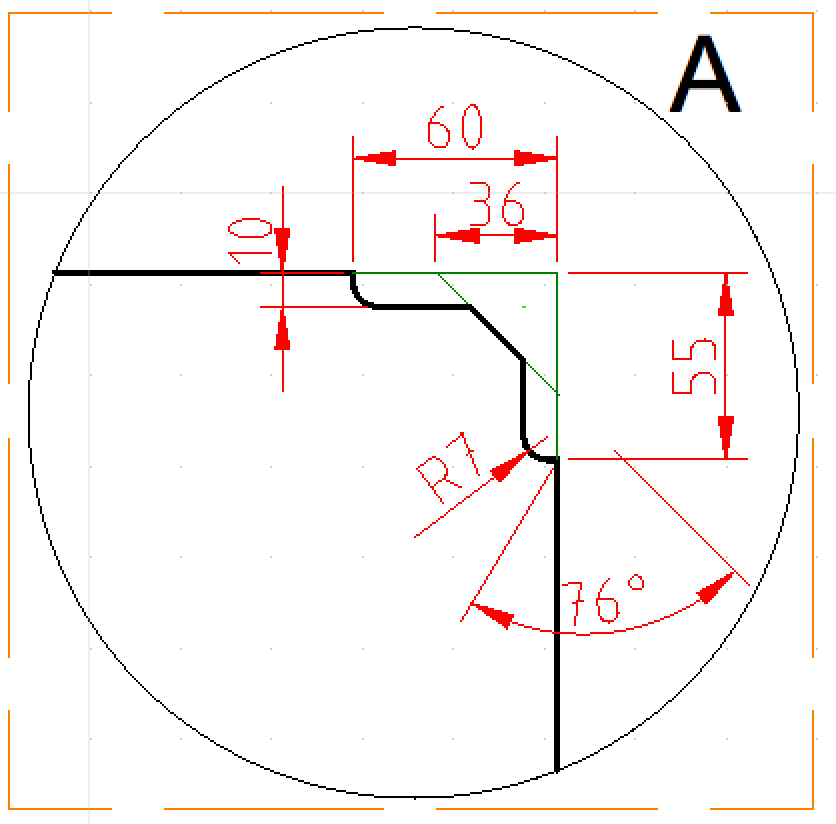

However, when I create a viewport and display the part in the the layout the angular measurement is another. See attachment 2.

In the model it should be noted that the part displayed is a detail copied with a different scale as to Zoom in on a detail in order to put dimensions on it. It was created by copying a part of the model and pasting it back in the model but with 3x zoom.

I have also included the full .dxf file in the hope that it helps you both reproduce and fix this issue

Note: The same problem seems to also produce “ghostlines” in other viewports in the layout which is not present in the model. Removing the angular measurement also removed the ghostline. You can observe the issue by looking at layout2 and you can see a line (dimension layer) going from top right corner of the viewport towards the lower left. This line is not present in the model and appears to be some strange extension to the angular dimension the detail that is just to the top right in the model.

System:
Macbook Pro 15”, OS X 10.13.6

(Can also be reproduced in Linux version)

QCad version:

Version: 3.21.2.0 (3.21.2)
Build Date: Jul 9 2018
Revision: f9cea14
Qt Version: 5.10.0
Architecture: x86_64
Compiler: Clang 8.0.0

Closed by  Andrew
31.07.2018 13:43
Reason for closing:  Fixed
Additional comments about closing:

https://github.com/qcad/qcad/commit /1c6c2fb6520b87f92d34d2d47e21fbeedc34d4f 8

Husky commented on 30.07.2018 18:57

Properly related to this issue:

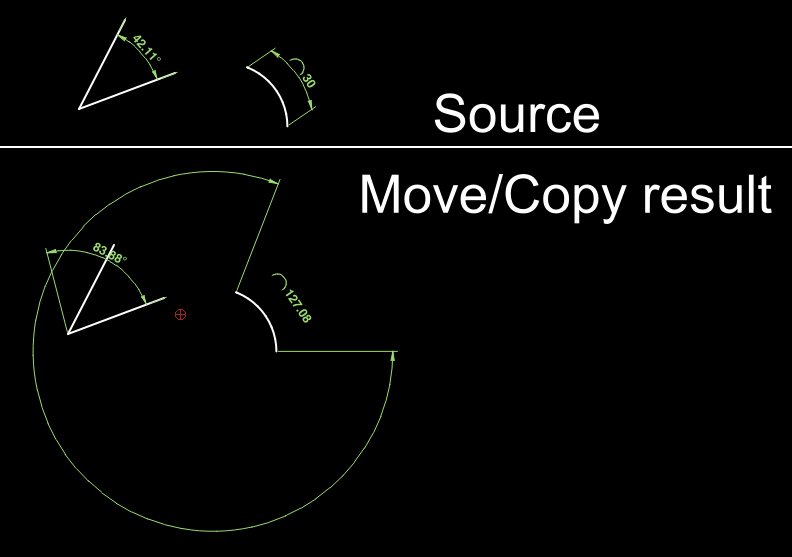

If I modify (Move, Rotate, Mirrow, Flip etc.) parts of a drawing which contains an Angular or Arc Length DIM the result will show that those DIM's were uncontrolled changed.
