RAddObjectsOperation Class Reference

Implementation of an operation that adds entities. More...

#include <RAddObjectsOperation.h>

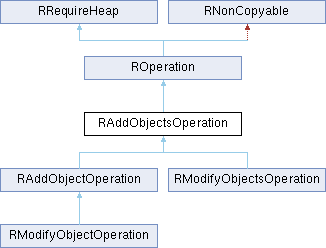

Inheritance diagram for RAddObjectsOperation:
ROperation RRequireHeap RNonCopyable RAddObjectOperation RModifyObjectsOperation RModifyObjectOperation

List of all members.

Classes

class  RModifiedObjects

Public Member Functions

void addObject (const QSharedPointer< RObject > &object, bool useCurrentAttributes=true, bool forceNew=false)
virtual RTransaction apply (RDocument &document, bool preview=false) const
 Applies this operation to selection in the given document.
void deleteObject (const QSharedPointer< RObject > &object)
void endCycle ()
QSharedPointer< RObjectgetObject (RObject::Id id)
int getPreviewCounter () const
 RAddObjectsOperation (bool undoable=true)
 Copyright (c) 2011-2013 by Andrew Mustun.
 RAddObjectsOperation (QList< QSharedPointer< RObject > > &list, bool useCurrentAttributes=true, bool undoable=true)
void replaceObject (const QSharedPointer< RObject > &object, bool useCurrentAttributes=true)
 Adds the given object to this operation or replaces an object already present with the same ID.
void setLimitPreview (bool on)
virtual ~RAddObjectsOperation ()
- Public Member Functions inherited from ROperation
RS::EntityType getEntityTypeFilter () const
 ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)
void setRecordAffectedObjects (bool on)
void setSpatialIndexDisabled (bool on)
virtual ~ROperation ()
- Public Member Functions inherited from RRequireHeap
void doDelete ()

Private Attributes

QList< RModifiedObjectsaddedObjects
bool limitPreview
int previewCounter

Additional Inherited Members

- Protected Attributes inherited from ROperation
RS::EntityType entityTypeFilter
bool recordAffectedObjects
bool spatialIndexDisabled
bool undoable

Detailed Description

Implementation of an operation that adds entities.

Scriptable:
This class is wrapped for script environments.

Constructor & Destructor Documentation

RAddObjectsOperation::RAddObjectsOperation ( bool  undoable = true)

Copyright (c) 2011-2013 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

RAddObjectsOperation::RAddObjectsOperation ( QList< QSharedPointer< RObject > > &  list,
bool  useCurrentAttributes = true,
bool  undoable = true
)
virtual RAddObjectsOperation::~RAddObjectsOperation ( )
inlinevirtual

Member Function Documentation

void RAddObjectsOperation::addObject ( const QSharedPointer< RObject > &  object,
bool  useCurrentAttributes = true,
bool  forceNew = false
)
RTransaction RAddObjectsOperation::apply ( RDocument document,
bool  preview = false
) const
virtual

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Implements ROperation.

void RAddObjectsOperation::deleteObject ( const QSharedPointer< RObject > &  object)
void RAddObjectsOperation::endCycle ( )
QSharedPointer< RObject > RAddObjectsOperation::getObject ( RObject::Id  id)
int RAddObjectsOperation::getPreviewCounter ( ) const
inline
void RAddObjectsOperation::replaceObject ( const QSharedPointer< RObject > &  object,
bool  useCurrentAttributes = true
)

Adds the given object to this operation or replaces an object already present with the same ID.

void RAddObjectsOperation::setLimitPreview ( bool  on)
inline

Member Data Documentation

QList<RModifiedObjects> RAddObjectsOperation::addedObjects
private
bool RAddObjectsOperation::limitPreview
private
int RAddObjectsOperation::previewCounter
private

The documentation for this class was generated from the following files:
