Open Source 2D CAD
RDeleteObjectsOperation Class Reference

Implementation of an operation that deletes entities. More...

#include <RDeleteObjectsOperation.h>

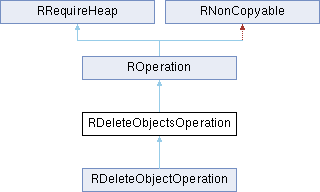

Inheritance diagram for RDeleteObjectsOperation:
ROperation RRequireHeap RNonCopyable RDeleteObjectOperation

Public Member Functions

virtual RTransaction apply (RDocument &document, bool preview=false) const
 Applies this operation to selection in the given document. More...
void deleteObject (const QSharedPointer< RObject > &o)
virtual void preview (RDocument &document, RExporter &exporter) const
 RDeleteObjectsOperation (bool undoable=true)
 Copyright (c) 2011-2016 by Andrew Mustun. More...
 RDeleteObjectsOperation (QList< QSharedPointer< RObject > > &list, bool undoable=true)
virtual ~RDeleteObjectsOperation ()
- Public Member Functions inherited from ROperation
RS::EntityType getEntityTypeFilter () const
 ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)
void setAllowAll (bool on)
void setAllowInvisible (bool on)
void setRecordAffectedObjects (bool on)
void setSpatialIndexDisabled (bool on)
void setText (const QString &t)
void setTransactionGroup (int g)
virtual ~ROperation ()
- Public Member Functions inherited from RRequireHeap
void doDelete ()

Private Attributes

QList< QSharedPointer< RObject > > list

Additional Inherited Members

- Protected Member Functions inherited from RRequireHeap
virtual ~RRequireHeap ()
- Protected Attributes inherited from ROperation
bool allowAll
bool allowInvisible
RS::EntityType entityTypeFilter
bool recordAffectedObjects
bool spatialIndexDisabled
QString text
int transactionGroup
bool undoable

Detailed Description

Implementation of an operation that deletes entities.

This class is available in script environments.

Constructor & Destructor Documentation

RDeleteObjectsOperation::RDeleteObjectsOperation ( bool  undoable = true)

Copyright (c) 2011-2016 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

RDeleteObjectsOperation::RDeleteObjectsOperation ( QList< QSharedPointer< RObject > > &  list,
bool  undoable = true
virtual RDeleteObjectsOperation::~RDeleteObjectsOperation ( )

Member Function Documentation

RTransaction RDeleteObjectsOperation::apply ( RDocument document,
bool  preview = false
) const

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Implements ROperation.

void RDeleteObjectsOperation::deleteObject ( const QSharedPointer< RObject > &  o)
void RDeleteObjectsOperation::preview ( RDocument document,
RExporter exporter
) const

Member Data Documentation

QList<QSharedPointer<RObject> > RDeleteObjectsOperation::list

The documentation for this class was generated from the following files:
