Angular dimension entity data class. More...

#include <RDimAngularData.h>

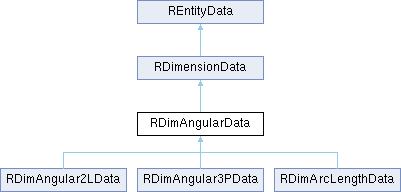

Inheritance diagram for RDimAngularData:

Public Member Functions
double	getAngle () const
bool	getAngles (double &ang1, double &ang2, bool &reversed, RVector &p1, RVector &p2) const
	Finds out which angles this dimension actually measures.
virtual QString	getAutoMeasurement () const
RVector	getCenter () const
RVector	getDimArcPosition () const
RVector	getExtensionLine1End () const
RVector	getExtensionLine1Start () const
RVector	getExtensionLine2End () const
RVector	getExtensionLine2Start () const
virtual QList< RVector >	getReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const
virtual QList< QSharedPointer < RShape > >	getShapes (const RBox &queryBox=RDEFAULT_RBOX) const
virtual bool	isValid () const
virtual bool	mirror (const RLine &axis)
virtual bool	move (const RVector &offset)
	Moves this entity by the given offset.
virtual bool	moveReferencePoint (const RVector &referencePoint, const RVector &targetPoint)
	Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.
	RDimAngularData ()
	RDimAngularData (const RDimensionData &dimData, const RVector &extensionLine1Start, const RVector &extensionLine1End, const RVector &extensionLine2Start, const RVector &dimArcPosition)
virtual bool	rotate (double rotation, const RVector &center)
virtual bool	scale (const RVector &scaleFactors, const RVector &center)
void	setDimArcPosition (const RVector &p)
void	setExtensionLine1End (const RVector &p)
void	setExtensionLine1Start (const RVector &p)
void	setExtensionLine2End (const RVector &p)
void	setExtensionLine2Start (const RVector &p)
Public Member Functions inherited from RDimensionData
QString	formatAngleLabel (double angle) const
QString	formatLabel (double distance) const
virtual QList< QSharedPointer < RShape > >	getArrow (const RVector &position, double direction) const
virtual RBox	getBoundingBox () const
RVector	getDefinitionPoint () const
double	getDimasz () const
QList< QSharedPointer< RShape > >	getDimensionLineShapes (const RVector &p1, const RVector &p2, bool arrow1, bool arrow2) const
	Creates a dimensioning line (line with one, two or no arrows).
double	getDimexe () const
double	getDimexo () const
double	getDimgap () const
double	getDimtxt () const
virtual double	getDistanceTo (const RVector &point, bool limited=true, double range=0.0, bool draft=false) const
QString	getFontName () const
virtual QString	getMeasurement (bool resolveAutoMeasurement=true) const
QString	getText () const
RTextData &	getTextData () const
RVector	getTextPosition () const
bool	hasCustomTextPosition () const
void	initTextData () const
	Initializes the text data of the text label of this dimension.
virtual bool	intersectsWith (const RShape &shape) const
	RDimensionData (RDocument *document=NULL)
	RDimensionData (const RVector &definitionPoint, const RVector &textPositionCenter, RS::VAlign valign, RS::HAlign halign, RS::TextLineSpacingStyle lineSpacingStyle, double lineSpacingFactor, const QString &text, const QString &fontName, double angle)
void	setCustomTextPosition (bool on)
void	setDefinitionPoint (const RVector &p)
void	setFontName (const QString &fn)
void	setLowerTolerance (const QString &t)
void	setText (const QString &t)
void	setTextPosition (const RVector &p)
void	setUpperTolerance (const QString &t)
virtual void	update () const
	Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).
virtual void	updateTextData () const
bool	useArchTick () const
Public Member Functions inherited from REntityData
virtual const RShape *	castToConstShape () const
virtual RShape *	castToShape ()
virtual bool	flipHorizontal ()
virtual bool	flipVertical ()
RLayer::Id	getBlockId () const
QString	getBlockName () const
virtual QList< RBox >	getBoundingBoxes () const
virtual QList< RVector >	getCenterPoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual RVector	getClosestPointOnEntity (const RVector &point, double range=RNANDOUBLE, bool limited=true) const
virtual QSharedPointer< RShape >	getClosestShape (const RVector &pos, double range=RNANDOUBLE) const
RColor	getColor () const
RColor	getColor (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack) const
RDocument *	getDocument ()
const RDocument *	getDocument () const
virtual int	getDrawOrder () const
virtual QList< RVector >	getEndPoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual QList< RVector >	getIntersectionPoints (const REntityData &other, bool limited=true, bool same=false, const RBox &queryBox=RDEFAULT_RBOX) const
virtual QList< RVector >	getIntersectionPoints (const RShape &shape, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX) const
RLayer::Id	getLayerId () const
QString	getLayerName ()
RLinetype::Id	getLinetypeId () const
RLinetype::Id	getLinetypeId (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack) const
RLineweight::Lineweight	getLineweight () const
RLineweight::Lineweight	getLineweight (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack) const
double	getLineweightInUnits (const QStack< RBlockReferenceEntity * > &blockRefStack) const
virtual QList< RVector >	getMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX) const
virtual RVector	getPointOnEntity () const
virtual QList< RVector >	getPointsWithDistanceToEnd (double distance, RS::From from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX) const
virtual RVector	getVectorTo (const RVector &point, bool limited=true) const
virtual bool	isInside (const RBox &box) const
virtual bool	isOnEntity (const RVector &point, bool limited=true) const
virtual bool	isSelected () const
virtual bool	mirror (const RVector &axis1, const RVector &axis2)
	REntityData (RDocument *document=NULL)
virtual bool	scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)
virtual void	setBlockId (RBlock::Id blockId)
void	setColor (const RColor &color)
void	setDocument (RDocument *document)
virtual void	setDrawOrder (int drawOrder)
	Sets the draw order of this entity.
virtual void	setLayerId (RLayer::Id layerId)
virtual void	setLinetype (RLinetype linetype)
virtual void	setLinetypeId (RLinetype::Id linetypeId)
void	setLineweight (RLineweight::Lineweight lineweight)
virtual void	setSelected (bool on)
	Selects or deselects this entity.
virtual bool	stretch (const RPolyline &area, const RVector &offset)
	Stretches the end points of this entity that are inside area by offset.
virtual	~REntityData ()

Protected Member Functions
	RDimAngularData (RDocument *document, const RDimAngularData &data)
Protected Member Functions inherited from RDimensionData
	RDimensionData (RDocument *document, const RDimensionData &data)

Private Attributes
RVector	dimArcPosition
	Arc position.
RVector	extensionLine1End
	End point of first extension line.
RVector	extensionLine1Start
	Start point of first extension line.
RVector	extensionLine2Start
	Start point of second extension line.

Friends
class	RDimAngularEntity

Additional Inherited Members
Protected Attributes inherited from RDimensionData
double	angle
	Rotation angle of dimension text away from default orientation.
bool	autoTextPos
	True if the textPosition should be automatically calculated.
RBox	boundingBox
double	defaultAngle
RVector	definitionPoint
	Definition point.
double	dimLineLength
bool	dirty
QString	fontName
	Dimension font name.
RS::HAlign	halign
	Horizontal alignment.
double	lineSpacingFactor
	Line spacing factor.
RS::TextLineSpacingStyle	lineSpacingStyle
	Line spacing style.
QString	lowerTolerance
	Lower tolerance limit.
QString	text
	Text string entered explicitly by user or null or "<>" for the actual measurement or " " (one blank space) for supressing the text.
RTextData	textData
RVector	textPositionCenter
	Middle point of dimension text.
RVector	textPositionSide
QString	upperTolerance
	Upper tolerance limit.
RS::VAlign	valign
	Vertical alignment.
Protected Attributes inherited from REntityData
RBlock::Id	blockId
RColor	color
RDocument *	document
int	drawOrder
RLayer::Id	layerId
RLinetype::Id	linetypeId
RLineweight::Lineweight	lineweight
bool	selectionStatus

Detailed Description

Angular dimension entity data class.

Scriptable:: This class is wrapped for script environments.

Constructor & Destructor Documentation

RDimAngularData::RDimAngularData	(	RDocument *	document,
		const RDimAngularData &	data
	)

protected

RDimAngularData::RDimAngularData ( )

RDimAngularData::RDimAngularData	(	const RDimensionData &	dimData,
		const RVector &	extensionLine1Start,
		const RVector &	extensionLine1End,
		const RVector &	extensionLine2Start,
		const RVector &	dimArcPosition
	)

Parameters:

definitionPoint Definition point is extensionLine2End.

Member Function Documentation

double RDimAngularData::getAngle ( ) const

Returns:: Angle of the measured dimension.

bool RDimAngularData::getAngles	(	double &	ang1,
		double &	ang2,
		bool &	reversed,
		RVector &	p1,
		RVector &	p2
	)		const

Finds out which angles this dimension actually measures.

Parameters:

ang1	Reference will return the start angle
ang2	Reference will return the end angle
reversed	Reference will return the reversed flag.

Returns:: true: on success

QString RDimAngularData::getAutoMeasurement ( ) const

virtual

Implements RDimensionData.

RVector RDimAngularData::getCenter ( ) const

Returns:: Center of the measured dimension.

RVector RDimAngularData::getDimArcPosition ( ) const

inline

RVector RDimAngularData::getExtensionLine1End ( ) const

inline

RVector RDimAngularData::getExtensionLine1Start ( ) const

inline

RVector RDimAngularData::getExtensionLine2End ( ) const

inline

RVector RDimAngularData::getExtensionLine2Start ( ) const

inline

QList< RVector > RDimAngularData::getReferencePoints ( RS::ProjectionRenderingHint hint = RS::RenderTop ) const

virtual

Returns:: Vector of reference points of this entity. Reference points can usually be moved around by the user to change the geometry of the entity.

Reimplemented from RDimensionData.

QList< QSharedPointer< RShape > > RDimAngularData::getShapes ( const RBox & queryBox = RDEFAULT_RBOX ) const

virtual

Returns:: Shapes that represent the geometry of this entity.

Reimplemented from REntityData.

bool RDimAngularData::isValid ( ) const

virtual

Reimplemented from RDimensionData.

bool RDimAngularData::mirror ( const RLine & axis )

virtual

Reimplemented from RDimensionData.

bool RDimAngularData::move ( const RVector & offset )

virtual

Moves this entity by the given offset.

Returns:: Points on entity which are intersection points in the given document.; True if this entity intersects with the given box or is completely inside it, false otherwise.

Reimplemented from RDimensionData.

bool RDimAngularData::moveReferencePoint	(	const RVector &	referencePoint,
		const RVector &	targetPoint
	)

virtual

Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.

Returns:: True if a reference point has been moved successfully, false otherwise.

Reimplemented from RDimensionData.

bool RDimAngularData::rotate	(	double	rotation,
		const RVector &	center
	)

virtual

Reimplemented from RDimensionData.

bool RDimAngularData::scale	(	const RVector &	scaleFactors,
		const RVector &	center
	)

virtual

Reimplemented from RDimensionData.

void RDimAngularData::setDimArcPosition ( const RVector & p )

inline

void RDimAngularData::setExtensionLine1End ( const RVector & p )

inline

void RDimAngularData::setExtensionLine1Start ( const RVector & p )

inline

void RDimAngularData::setExtensionLine2End ( const RVector & p )

inline

void RDimAngularData::setExtensionLine2Start ( const RVector & p )

inline

Friends And Related Function Documentation

friend class RDimAngularEntity

friend

Member Data Documentation

RVector RDimAngularData::dimArcPosition

private

Arc position.

RVector RDimAngularData::extensionLine1End

private

End point of first extension line.

RVector RDimAngularData::extensionLine1Start

private

Start point of first extension line.

RVector RDimAngularData::extensionLine2Start

private

Start point of second extension line.

End is definition point.

The documentation for this class was generated from the following files:

src/entity/RDimAngularData.h
src/entity/RDimAngularData.cpp

Public Member Functions

Protected Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
