RDimensionEntity Class Reference

Base class for dimension entity classes. More...

#include <RDimensionEntity.h>

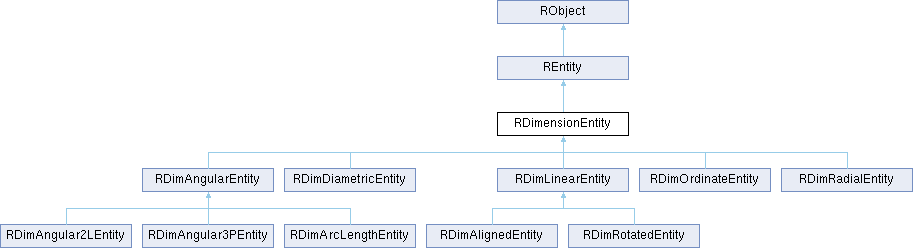

Inheritance diagram for RDimensionEntity:
REntity RObject RDimAlignedEntity RDimAngularEntity RDimDiametricEntity RDimLinearEntity RDimOrdinateEntity RDimRadialEntity RDimRotatedEntity

List of all members.

Public Member Functions

virtual void exportEntity (RExporter &e, bool preview=false) const
 Exports the entity to the given exporter.
virtual RDimensionDatagetData ()=0
virtual const RDimensionDatagetData () const =0
RVector getDefinitionPoint () const
QString getFontName () const
double getLinearFactor () const
double getLineSpacingFactor () const
RS::TextLineSpacingStyle getLineSpacingStyle () const
QString getMeasurement (bool resolveAutoMeasurement=true) const
QPair< QVariant,
RPropertyAttributes
getProperty (RPropertyTypeId &propertyTypeId, bool humanReadable=false, bool noAttributes=false)
QString getText () const
double getTextAngle () const
RTextData getTextData () const
RVector getTextPosition () const
virtual RS::EntityType getType () const
bool hasCustomTextPosition () const
virtual bool isValid () const
 RDimensionEntity (RDocument *document, RObject::Id objectId=RObject::INVALID_ID)
void setCustomTextPosition (bool on)
void setDefinitionPoint (const RVector &p)
void setFontName (const QString &fn)
void setLinearFactor (double f)
bool setProperty (RPropertyTypeId propertyTypeId, const QVariant &value, RTransaction *transaction=NULL)
 Sets the given property to the given value.
void setText (const QString &t)
void setTextPosition (const RVector &p)
virtual ~RDimensionEntity ()
- Public Member Functions inherited from REntity
virtual const RShapecastToConstShape () const
virtual RShapecastToShape ()

virtual REntityclone () const =0
void copyAttributesFrom (REntity *entity, bool copyBlockId=true)
 Copies all attributes (layer, block, color, line weight, line style) from the given entity.
void dump ()
virtual bool flipHorizontal ()

virtual bool flipVertical ()

RBlock::Id getBlockId () const

QString getBlockName () const

virtual RBox getBoundingBox () const

virtual QList< RBoxgetBoundingBoxes () const

virtual QList< RVectorgetCenterPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RVector getClosestPointOnEntity (const RVector &point, double range=RNANDOUBLE, bool limited=true) const

virtual QSharedPointer< RShapegetClosestShape (const RVector &pos, double range=RNANDOUBLE) const

RColor getColor () const

RColor getColor (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack)

virtual int getComplexity () const
virtual double getDistanceTo (const RVector &point, bool limited=true, double range=0.0, bool draft=false) const

int getDrawOrder () const

virtual QList< RVectorgetEndPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual QList< RVectorgetInternalReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const
 Can be overwritten to return internal, resolved reference points.
virtual QList< RVectorgetIntersectionPoints (const REntity &other, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX) const

virtual QList< RVectorgetIntersectionPoints (const RShape &shape, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX) const

RLayer::Id getLayerId () const

QString getLayerName () const

RLinetype::Id getLinetypeId () const

RLinetype::Id getLinetypeId (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack) const

RLineweight::Lineweight getLineweight () const

RLineweight::Lineweight getLineweight (bool resolve, const QStack< RBlockReferenceEntity * > &blockRefStack) const

double getLineweightInUnits (const QStack< RBlockReferenceEntity * > &blockRefStack) const

virtual QList< RVectorgetMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX) const

REntity::Id getParentId () const

virtual RVector getPointOnEntity () const

virtual QList< RVectorgetPointsWithDistanceToEnd (double distance, RS::From from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX) const

virtual QList< RVectorgetReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const

virtual QList< QSharedPointer
< RShape > >
getShapes (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RVector getVectorTo (const RVector &point, bool limited=true) const

virtual bool intersectsWith (const RShape &shape) const

bool isEditable (bool allowInvisible=false) const
virtual bool isInside (const RBox &box) const

virtual bool isOnEntity (const RVector &point, bool limited=true) const

bool isSelected () const
 Reimplemented by entities that are part of a block reference but not stored as part of the block definition (currently only block attributes).
virtual bool isSelectedForPropertyEditing ()
bool isVisible () const
virtual bool mirror (const RLine &axis)

virtual bool mirror (const RVector &axis1, const RVector &axis2)

virtual bool move (const RVector &offset)
 Moves this entity by the given offset.
virtual bool moveReferencePoint (const RVector &referencePoint, const RVector &targetPoint)
 Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.
 REntity (RDocument *document, Id objectId=-1)
virtual bool rotate (double rotation, const RVector &center=RDEFAULT_RVECTOR)

virtual bool scale (const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

virtual bool scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)

void setBlockId (RBlock::Id blockId)

void setColor (const RColor &color)

void setDocument (RDocument *document)
void setDrawOrder (int drawOrder)
 Sets the draw order of this entity.
void setLayerId (RLayer::Id layerId)

void setLinetype (RLinetype linetype)

void setLinetypeId (RLinetype::Id linetypeId)

void setLineweight (RLineweight::Lineweight lineweight)

void setParentId (REntity::Id parentId)

virtual void setSelected (bool on)
 Selects or deselects this entity.
virtual bool stretch (const RPolyline &area, const RVector &offset)
 Stretches the end points of this entity that are inside area by offset.
void update () const
 Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).
virtual ~REntity ()
- Public Member Functions inherited from RObject
QMap< QString, QVariantMap > getCustomProperties () const
QVariant getCustomProperty (const QString &title, const QString &key, const QVariant &defaultValue=RDEFAULT_QVARIANT)
QStringList getCustomPropertyKeys (const QString &title) const
QStringList getCustomPropertyTitles () const
virtual QSet< RPropertyTypeIdgetCustomPropertyTypeIds () const
RDocumentgetDocument ()
const RDocumentgetDocument () const
RObject::Handle getHandle () const
RObject::Id getId () const
virtual QSet< RPropertyTypeIdgetPropertyTypeIds () const
virtual bool hasPropertyType (RPropertyTypeId propertyTypeId)
bool isUndone () const
void removeCustomProperty (const QString &title, const QString &key)
 Removes the custom property with the given name.
 RObject (RDocument *document=NULL, Id id=INVALID_ID)
void setCustomProperty (const QString &title, const QString &key, const QVariant &value)
 Sets a custom property with the given name.
virtual void setUndone (bool on)
virtual ~RObject ()

Static Public Member Functions

static QSet< RPropertyTypeIdgetStaticPropertyTypeIds ()
static void init ()

Static Public Attributes

static RPropertyTypeId PropertyAutoLabel
static RPropertyTypeId PropertyAutoTextPos
static RPropertyTypeId PropertyBlock
static RPropertyTypeId PropertyColor
static RPropertyTypeId PropertyCustom
 Copyright (c) 2011-2013 by Andrew Mustun.
static RPropertyTypeId PropertyDefinitionPointX
static RPropertyTypeId PropertyDefinitionPointY
static RPropertyTypeId PropertyDefinitionPointZ
static RPropertyTypeId PropertyDrawOrder
static RPropertyTypeId PropertyFontName
static RPropertyTypeId PropertyHandle
static RPropertyTypeId PropertyLayer
static RPropertyTypeId PropertyLinearFactor
static RPropertyTypeId PropertyLinetype
static RPropertyTypeId PropertyLineweight
static RPropertyTypeId PropertyLowerTolerance
static RPropertyTypeId PropertyMeasuredValue
static RPropertyTypeId PropertyMiddleOfTextX
static RPropertyTypeId PropertyMiddleOfTextY
static RPropertyTypeId PropertyMiddleOfTextZ
static RPropertyTypeId PropertyText
static RPropertyTypeId PropertyType
static RPropertyTypeId PropertyUpperTolerance
- Static Public Attributes inherited from REntity
static RPropertyTypeId PropertyMaxX
static RPropertyTypeId PropertyMaxY
static RPropertyTypeId PropertyMinX
static RPropertyTypeId PropertyMinY
- Static Public Attributes inherited from RObject
static const Handle INVALID_HANDLE = -1
static const Id INVALID_ID = -1
 Copyright (c) 2011-2013 by Andrew Mustun.

Protected Member Functions

virtual void print (QDebug dbg) const
 Stream operator for QDebug.

Detailed Description

Base class for dimension entity classes.

Scriptable:
This class is wrapped for script environments.
Shared Pointer Support:
Script wrappers of this class support wrapping in QSharedPointer.

Constructor & Destructor Documentation

RDimensionEntity::RDimensionEntity ( RDocument document,
RObject::Id  objectId = RObject::INVALID_ID
)
RDimensionEntity::~RDimensionEntity ( )
virtual

Member Function Documentation

void RDimensionEntity::exportEntity ( RExporter e,
bool  preview = false
) const
virtual

Exports the entity to the given exporter.

The exporter might be a file exporter, a graphics scene or any other platform one can export entities to.

Implements REntity.

virtual RDimensionData& RDimensionEntity::getData ( )
pure virtual
Returns:
Reference to the data object of the entity.

Implements REntity.

Implemented in RDimAngularEntity, RDimRotatedEntity, RDimOrdinateEntity, RDimAlignedEntity, RDimDiametricEntity, RDimRadialEntity, and RDimLinearEntity.

virtual const RDimensionData& RDimensionEntity::getData ( ) const
pure virtual
Returns:
Const reference to the data object of the entity.

Implements REntity.

Implemented in RDimAngularEntity, RDimRotatedEntity, RDimOrdinateEntity, RDimAlignedEntity, RDimDiametricEntity, RDimRadialEntity, and RDimLinearEntity.

RVector RDimensionEntity::getDefinitionPoint ( ) const
inline
QString RDimensionEntity::getFontName ( ) const
inline
double RDimensionEntity::getLinearFactor ( ) const
inline
double RDimensionEntity::getLineSpacingFactor ( ) const
inline
RS::TextLineSpacingStyle RDimensionEntity::getLineSpacingStyle ( ) const
inline
QString RDimensionEntity::getMeasurement ( bool  resolveAutoMeasurement = true) const
inline
QPair< QVariant, RPropertyAttributes > RDimensionEntity::getProperty ( RPropertyTypeId propertyTypeId,
bool  humanReadable = false,
bool  noAttributes = false
)
virtual
Returns:
The value and attributes of the given property or an invalid property if this property owner has no property with the given ID.

Reimplemented from REntity.

Reimplemented in RDimAngularEntity, RDimRotatedEntity, RDimOrdinateEntity, RDimAlignedEntity, RDimDiametricEntity, RDimRadialEntity, and RDimLinearEntity.

static QSet<RPropertyTypeId> RDimensionEntity::getStaticPropertyTypeIds ( )
inlinestatic
QString RDimensionEntity::getText ( ) const
inline
double RDimensionEntity::getTextAngle ( ) const
inline
RTextData RDimensionEntity::getTextData ( ) const
inline
RVector RDimensionEntity::getTextPosition ( ) const
inline
virtual RS::EntityType RDimensionEntity::getType ( ) const
inlinevirtual
bool RDimensionEntity::hasCustomTextPosition ( ) const
inline
void RDimensionEntity::init ( )
static
virtual bool RDimensionEntity::isValid ( ) const
inlinevirtual
void RDimensionEntity::print ( QDebug  dbg) const
protectedvirtual

Stream operator for QDebug.

Reimplemented from REntity.

Reimplemented in RDimAngularEntity, RDimOrdinateEntity, RDimRotatedEntity, RDimAlignedEntity, RDimDiametricEntity, RDimRadialEntity, and RDimLinearEntity.

void RDimensionEntity::setCustomTextPosition ( bool  on)
inline
void RDimensionEntity::setDefinitionPoint ( const RVector p)
inline
void RDimensionEntity::setFontName ( const QString &  fn)
inline
void RDimensionEntity::setLinearFactor ( double  f)
inline
bool RDimensionEntity::setProperty ( RPropertyTypeId  propertyTypeId,
const QVariant &  value,
RTransaction transaction = NULL
)
virtual

Sets the given property to the given value.

If this property owner does not know a property with that ID, it is up to the property owner what happens. The property might be added into a list of dynamic properties or dropped.

Returns:
True if the property owner was modified in any way, false otherwise.

Reimplemented from REntity.

Reimplemented in RDimAngularEntity, RDimRotatedEntity, RDimOrdinateEntity, RDimAlignedEntity, RDimDiametricEntity, RDimRadialEntity, and RDimLinearEntity.

void RDimensionEntity::setText ( const QString &  t)
inline
void RDimensionEntity::setTextPosition ( const RVector p)
inline

Member Data Documentation

RPropertyTypeId RDimensionEntity::PropertyAutoLabel
static
RPropertyTypeId RDimensionEntity::PropertyAutoTextPos
static
RPropertyTypeId RDimensionEntity::PropertyBlock
static
RPropertyTypeId RDimensionEntity::PropertyColor
static
RPropertyTypeId RDimensionEntity::PropertyCustom
static

Copyright (c) 2011-2013 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

Reimplemented from REntity.

Reimplemented in RDimAlignedEntity, RDimAngularEntity, RDimDiametricEntity, RDimLinearEntity, RDimOrdinateEntity, RDimRadialEntity, and RDimRotatedEntity.

RPropertyTypeId RDimensionEntity::PropertyDefinitionPointX
static
RPropertyTypeId RDimensionEntity::PropertyDefinitionPointY
static
RPropertyTypeId RDimensionEntity::PropertyDefinitionPointZ
static
RPropertyTypeId RDimensionEntity::PropertyDrawOrder
static
RPropertyTypeId RDimensionEntity::PropertyHandle
static
RPropertyTypeId RDimensionEntity::PropertyLayer
static
RPropertyTypeId RDimensionEntity::PropertyLinearFactor
static
RPropertyTypeId RDimensionEntity::PropertyLinetype
static
RPropertyTypeId RDimensionEntity::PropertyLineweight
static
RPropertyTypeId RDimensionEntity::PropertyType
static

The documentation for this class was generated from the following files:
