ROperation Class Referenceabstract

This abstract class is an interface for all operation implementations. More...

#include <ROperation.h>

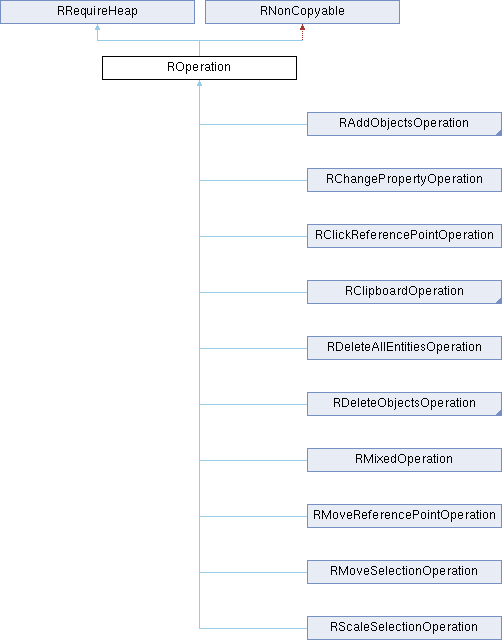

Inheritance diagram for ROperation:
RRequireHeap RNonCopyable RAddObjectsOperation RChangePropertyOperation RClipboardOperation RDeleteAllEntitiesOperation RDeleteObjectsOperation RMixedOperation RMoveReferencePointOperation RMoveSelectionOperation

Public Member Functions

virtual RTransaction apply (RDocument &document, bool preview=false) const =0
 Applies this operation to selection in the given document. More...

RS::EntityType getEntityTypeFilter () const

 ROperation (bool undoable=true, RS::EntityType entityTypeFilter=RS::EntityAll)

void setAllowInvisible (bool on)

void setRecordAffectedObjects (bool on)

void setSpatialIndexDisabled (bool on)

void setText (const QString &t)

void setTransactionGroup (int g)

virtual ~ROperation ()

- Public Member Functions inherited from RRequireHeap
void doDelete ()


Protected Attributes

bool allowInvisible

RS::EntityType entityTypeFilter

bool recordAffectedObjects

bool spatialIndexDisabled

QString text

int transactionGroup

bool undoable


Additional Inherited Members

- Protected Member Functions inherited from RRequireHeap
virtual ~RRequireHeap ()

- Private Member Functions inherited from RNonCopyable
 RNonCopyable ()

 ~RNonCopyable ()


Detailed Description

This abstract class is an interface for all operation implementations.

An operation encapsulates a modification that can be applied to a document. An implementing class might for example implement a move operation that moves all selected entities by a given vector.

Scriptable:
This class is available in script environments.

Constructor & Destructor Documentation

ROperation::ROperation ( bool  undoable = true,
RS::EntityType  entityTypeFilter = RS::EntityAll
)
inline
virtual ROperation::~ROperation ( )
inlinevirtual

Member Function Documentation

virtual RTransaction ROperation::apply ( RDocument document,
bool  preview = false
) const
pure virtual

Applies this operation to selection in the given document.

This is used for both previews and the actual apply. In case of a preview, the given document is a temporary document with a storage that is linked to the real document for realistic condiditions for the preview.

Implemented in RPasteOperation, RAddObjectsOperation, RMixedOperation, RChangePropertyOperation, RDeleteObjectsOperation, RDeleteAllEntitiesOperation, RMoveSelectionOperation, RMoveReferencePointOperation, RCopyOperation, and RDeleteSelectionOperation.

RS::EntityType ROperation::getEntityTypeFilter ( ) const
inline
void ROperation::setAllowInvisible ( bool  on)
inline
void ROperation::setRecordAffectedObjects ( bool  on)
inline
void ROperation::setSpatialIndexDisabled ( bool  on)
inline
void ROperation::setText ( const QString &  t)
inline
void ROperation::setTransactionGroup ( int  g)
inline

Member Data Documentation

bool ROperation::allowInvisible
protected
RS::EntityType ROperation::entityTypeFilter
protected
bool ROperation::recordAffectedObjects
protected
bool ROperation::spatialIndexDisabled
protected
QString ROperation::text
protected
int ROperation::transactionGroup
protected
bool ROperation::undoable
protected

The documentation for this class was generated from the following file:
