REntityData Class Referenceabstract

Base class for all entity data classes. More...

#include <REntityData.h>

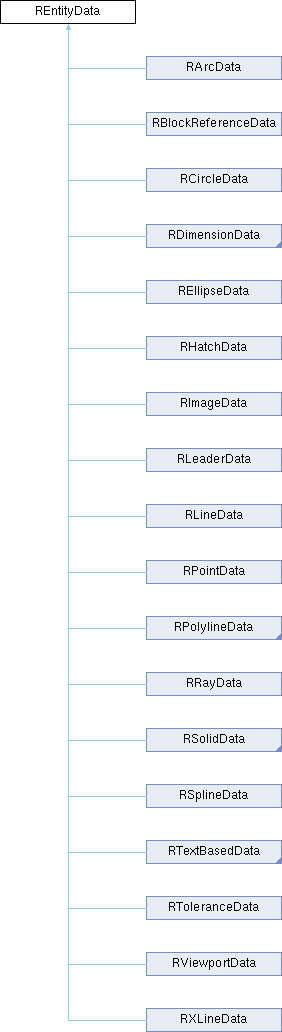

Inheritance diagram for REntityData:
RArcData RBlockReferenceData RCircleData RDimensionData REllipseData RHatchData RImageData RLeaderData RLineData RPointData RPolylineData RRayData RSolidData RSplineData RTextBasedData RToleranceData RViewportData RXLineData

Public Member Functions

virtual const RShapecastToConstShape () const

virtual RShapecastToShape ()

virtual bool clickReferencePoint (const RVector &referencePoint)
 Called when user clicks a reference point. More...

virtual bool cloneOnChange () const
 Reimplement to force clone on change in transactions. More...

void copyAttributesFrom (const REntityData &entityData, bool copyBlockId=true)

virtual bool flipHorizontal ()

virtual bool flipVertical ()

virtual QList< RVectorgetArcReferencePoints (const RBox &queryBox=RDEFAULT_RBOX) const

RBlock::Id getBlockId () const

QString getBlockName () const

virtual RBox getBoundingBox (bool ignoreEmpty=false) const

virtual QList< RBoxgetBoundingBoxes (bool ignoreEmpty=false) const

virtual QList< RVectorgetCenterPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RVector getClosestPointOnEntity (const RVector &point, double range=RNANDOUBLE, bool limited=true) const

virtual QSharedPointer< RShapegetClosestShape (const RVector &pos, double range=RNANDOUBLE, bool ignoreComplex=false) const

virtual RColor getColor () const

virtual RColor getColor (bool resolve, const QStack< REntity * > &blockRefStack) const

virtual RColor getColor (const RColor &unresolvedColor, const QStack< REntity * > &blockRefStack) const

virtual RColor getDisplayColor ()

virtual double getDistanceTo (const RVector &point, bool limited=true, double range=0.0, bool draft=false, double strictRange=RMAXDOUBLE) const

RDocumentgetDocument ()

const RDocumentgetDocument () const

virtual int getDrawOrder () const

virtual QList< RVectorgetEndPoints (const RBox &queryBox=RDEFAULT_RBOX) const

virtual RPolyline getHull (double offset) const

virtual QList< RRefPointgetInternalReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const
 Can be overwritten to return internal, resolved reference points. More...

virtual QList< RVectorgetIntersectionPoints (const REntityData &other, bool limited=true, bool same=false, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true) const

virtual QList< RVectorgetIntersectionPoints (const RShape &shape, bool limited=true, const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=true) const

RLayer::Id getLayerId () const

QString getLayerName () const

virtual RLinetype::Id getLinetypeId () const

virtual RLinetype::Id getLinetypeId (bool resolve, const QStack< REntity * > &blockRefStack) const

virtual RLinetypePattern getLinetypePattern () const

virtual double getLinetypeScale () const

virtual RLineweight::Lineweight getLineweight () const

virtual RLineweight::Lineweight getLineweight (bool resolve, const QStack< REntity * > &blockRefStack) const

double getLineweightInUnits (const QStack< REntity * > &blockRefStack) const

virtual QList< RVectorgetMiddlePoints (const RBox &queryBox=RDEFAULT_RBOX) const

RObject::Id getParentId () const

virtual RVector getPointOnEntity () const

virtual QList< RVectorgetPointsWithDistanceToEnd (double distance, int from=RS::FromAny, const RBox &queryBox=RDEFAULT_RBOX) const

virtual QList< RRefPointgetReferencePoints (RS::ProjectionRenderingHint hint=RS::RenderTop) const =0

virtual QList< QSharedPointer< RShape > > getShapes (const RBox &queryBox=RDEFAULT_RBOX, bool ignoreComplex=false, bool segment=false) const

virtual RS::EntityType getType () const

virtual RVector getVectorTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual bool intersectsWith (const RShape &shape) const

virtual bool isInside (const RBox &box) const

virtual bool isOnEntity (const RVector &point, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual bool isPointType () const

virtual bool isSane () const

virtual bool isSelected () const

virtual bool isSelectedWorkingSet () const

virtual bool isUpdatesEnabled () const

virtual bool isValid () const

virtual bool mirror (const RLine &axis)

virtual bool mirror (const RVector &axis1, const RVector &axis2)

virtual bool move (const RVector &offset)
 Moves this entity by the given offset. More...

virtual bool moveReferencePoint (const RVector &referencePoint, const RVector &targetPoint, Qt::KeyboardModifiers modifiers=Qt::NoModifier)=0
 Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location. More...

 REntityData (RDocument *document=NULL)
 Copyright (c) 2011-2018 by Andrew Mustun. More...

virtual bool rotate (double rotation, const RVector &center=RDEFAULT_RVECTOR)

virtual bool scale (const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

virtual bool scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)

virtual void scaleVisualProperties (double scaleFactor)

void setAutoUpdatesBlocked (bool on)

virtual void setBlockId (RBlock::Id blockId)

void setColor (const RColor &color)

void setDocument (RDocument *document)

virtual void setDrawOrder (int drawOrder)
 Sets the draw order of this entity. More...

virtual void setLayerId (RLayer::Id layerId)

void setLayerName (const QString &layerName)

virtual void setLinetypeId (RLinetype::Id linetypeId)
 Sets the linetype of this entity to the given linetype ID. More...

virtual void setLinetypePattern (const RLinetypePattern &p)

virtual void setLinetypeScale (double linetypeScale)

void setLineweight (RLineweight::Lineweight lineweight)

virtual void setParentId (RObject::Id parentId)

virtual void setSelected (bool on)
 Selects or deselects this entity. More...

virtual void setSelectedWorkingSet (bool on)
 Selects or deselects this entity for addition to the current working set. More...

void setUpdatesEnabled (bool on)
 Enables / disables cache updates. More...

virtual void setZ (double z)

virtual bool stretch (const RPolyline &area, const RVector &offset)
 Stretches the end points of this entity that are inside area by offset. More...

virtual void to2D ()

virtual void update () const
 Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty). More...

virtual ~REntityData ()


Static Public Member Functions

static int getDefaultDrawOrder ()


Protected Attributes

bool autoUpdatesBlocked
 Block auto updates is true during imports, undo and redo. More...

RBlock::Id blockId

RColor color

RDocumentdocument

int drawOrder

RLayer::Id layerId

RLinetype::Id linetypeId

double linetypeScale

RLineweight::Lineweight lineweight

RObject::Id parentId

bool selectionStatus

bool selectionStatusWorkingSet

bool updatesEnabled


Friends

class REntity


Detailed Description

Base class for all entity data classes.

Such classes are used to separate functionality from data. Data objects may for example be used to perform certain calculations. A custom entity might use the same data class as a standard entity to provide similar behavior (e.g. a wall might behave similar like a line entity).

\TODO derive from RObjectData with flags for selection status etc.

Scriptable:\nThis class is available in script environments.\n
Shared Pointer Support:\nObjects can be used in QSharedPointer.\n

Constructor & Destructor Documentation

◆ REntityData()

REntityData::REntityData ( RDocument document = NULL)

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ ~REntityData()

virtual REntityData::~REntityData ( )
inlinevirtual

Member Function Documentation

◆ castToConstShape()

virtual const RShape* REntityData::castToConstShape ( ) const
inlinevirtual
Non-Scriptable:\nThis function is not available in script environments.\n

◆ castToShape()

◆ clickReferencePoint()

virtual bool REntityData::clickReferencePoint ( const RVector referencePoint)
inlinevirtual

Called when user clicks a reference point.

Returns
True if clicking the reference point had any immediate effect.

Reimplemented in RDimensionData.

◆ cloneOnChange()

virtual bool REntityData::cloneOnChange ( ) const
inlinevirtual

Reimplement to force clone on change in transactions.

Reimplemented in RHatchData.

◆ copyAttributesFrom()

void REntityData::copyAttributesFrom ( const REntityData entityData,
bool  copyBlockId = true
)

◆ flipHorizontal()

bool REntityData::flipHorizontal ( )
virtual

Reimplemented in RTextBasedData, and RToleranceData.

◆ flipVertical()

bool REntityData::flipVertical ( )
virtual

Reimplemented in RTextBasedData, and RToleranceData.

◆ getArcReferencePoints()

QList< RVector > REntityData::getArcReferencePoints ( const RBox queryBox = RDEFAULT_RBOX) const
virtual
Returns
Vector of reference points of this entity. Used for snap to reference points.

◆ getBlockId()

RBlock::Id REntityData::getBlockId ( ) const
inline

◆ getBlockName()

QString REntityData::getBlockName ( ) const

◆ getBoundingBox()

RBox REntityData::getBoundingBox ( bool  ignoreEmpty = false) const
virtual

◆ getBoundingBoxes()

virtual QList<RBox> REntityData::getBoundingBoxes ( bool  ignoreEmpty = false) const
inlinevirtual
Returns
List of bounding boxes that contain this entity. This is used for complex entities such as block references to further optimize algorithms that depend on bounding boxes (e.g. spatial index algorithms). The default implementation returns the bounding box that contains the whole entity.

Reimplemented in RBlockReferenceData, and RPolylineData.

◆ getCenterPoints()

QList< RVector > REntityData::getCenterPoints ( const RBox queryBox = RDEFAULT_RBOX) const
virtual
Returns
Vector of center points of this entity. Used for snap to center points.

Reimplemented in RTextBasedData.

◆ getClosestPointOnEntity()

RVector REntityData::getClosestPointOnEntity ( const RVector point,
double  range = RNANDOUBLE,
bool  limited = true
) const
virtual
Returns
Closest point to point on this entity. Used for snap to points on entity.

Reimplemented in RTextBasedData.

◆ getClosestShape()

QSharedPointer< RShape > REntityData::getClosestShape ( const RVector pos,
double  range = RNANDOUBLE,
bool  ignoreComplex = false
) const
virtual
Returns
The one shape that is part of this entity which is the closest to the given position.

Reimplemented in RTextBasedData.

◆ getColor() [1/3]

virtual RColor REntityData::getColor ( ) const
inlinevirtual

Reimplemented in RHatchData, and RAttributeData.

◆ getColor() [2/3]

RColor REntityData::getColor ( bool  resolve,
const QStack< REntity * > &  blockRefStack
) const
virtual
Returns
Color of this entity.
Parameters
resolveResolve color if ByLayer or ByBlock.

Reimplemented in RHatchData, and RAttributeData.

◆ getColor() [3/3]

RColor REntityData::getColor ( const RColor unresolvedColor,
const QStack< REntity * > &  blockRefStack
) const
virtual

Reimplemented in RHatchData.

◆ getDefaultDrawOrder()

static int REntityData::getDefaultDrawOrder ( )
inlinestatic

◆ getDisplayColor()

virtual RColor REntityData::getDisplayColor ( )
inlinevirtual

◆ getDistanceTo()

double REntityData::getDistanceTo ( const RVector point,
bool  limited = true,
double  range = 0.0,
bool  draft = false,
double  strictRange = RMAXDOUBLE
) const
virtual
Returns
The shortest distance from this entity to the given point.
Parameters
limitedLimit lines, arcs at end points, otherwise the orthogonal distance to the unlimited line / circle is returned.
rangeThis is returned for solid filled entities (solid filled or dense hatches, text entities) if the point is on the entity and the distance would be zero.
draftCalculate based on draft mode representation of the entity.
strictRangeIf limited, this is the maximum range from either end point of the entity. Zero to only return distances that are strictly orthogonal to the entity.

Reimplemented in RDimensionData, RViewportData, RTextBasedData, RHatchData, RBlockReferenceData, RImageData, and RPolylineData.

◆ getDocument() [1/2]

RDocument* REntityData::getDocument ( )
inline

◆ getDocument() [2/2]

const RDocument* REntityData::getDocument ( ) const
inline

◆ getDrawOrder()

virtual int REntityData::getDrawOrder ( ) const
inlinevirtual
Returns
The draw order of this entity. Entities are usually drawn in ascending order of this number.

◆ getEndPoints()

QList< RVector > REntityData::getEndPoints ( const RBox queryBox = RDEFAULT_RBOX) const
virtual
Returns
Vector of end points of this entity. Used for snap to end points.

Reimplemented in RTextBasedData.

◆ getHull()

RPolyline REntityData::getHull ( double  offset) const
virtual
Returns
A polygon that contains this entity. Default implementation returns a polygon around the bounding box.

Reimplemented in RLineData.

◆ getInternalReferencePoints()

virtual QList<RRefPoint> REntityData::getInternalReferencePoints ( RS::ProjectionRenderingHint  hint = RS::RenderTop) const
inlinevirtual

Can be overwritten to return internal, resolved reference points.

This is used for example for block references in combination with snap to reference points. Default implementation returns same as getReferencePoints().

Reimplemented in RViewportData, and RBlockReferenceData.

◆ getIntersectionPoints() [1/2]

QList< RVector > REntityData::getIntersectionPoints ( const REntityData other,
bool  limited = true,
bool  same = false,
const RBox queryBox = RDEFAULT_RBOX,
bool  ignoreComplex = true
) const
virtual
Returns
Points on entity which are intersection points with the given other entity. If same is true, the two datas originate from the same entity.

Reimplemented in RPolylineData.

◆ getIntersectionPoints() [2/2]

QList< RVector > REntityData::getIntersectionPoints ( const RShape shape,
bool  limited = true,
const RBox queryBox = RDEFAULT_RBOX,
bool  ignoreComplex = true
) const
virtual
Returns
Points on entity which are intersection points with the given shape.

◆ getLayerId()

RLayer::Id REntityData::getLayerId ( ) const
inline

◆ getLayerName()

QString REntityData::getLayerName ( ) const

◆ getLinetypeId() [1/2]

virtual RLinetype::Id REntityData::getLinetypeId ( ) const
inlinevirtual
Returns
Linetype ID of this entity. Note that this might be ByLayer or ByBlock.

◆ getLinetypeId() [2/2]

RLinetype::Id REntityData::getLinetypeId ( bool  resolve,
const QStack< REntity * > &  blockRefStack
) const
virtual

Reimplemented in RAttributeData.

◆ getLinetypePattern()

RLinetypePattern REntityData::getLinetypePattern ( ) const
virtual

◆ getLinetypeScale()

virtual double REntityData::getLinetypeScale ( ) const
inlinevirtual

◆ getLineweight() [1/2]

virtual RLineweight::Lineweight REntityData::getLineweight ( ) const
inlinevirtual

◆ getLineweight() [2/2]

RLineweight::Lineweight REntityData::getLineweight ( bool  resolve,
const QStack< REntity * > &  blockRefStack
) const
virtual
Parameters
resolveTrue: resolve ByLayer / ByBlock and always return a lineweight in 1/100 mm.
layerLayer to use for resolving if known, NULL otherwise.
blockRefBlock reference to use for resolving if known, NULL otherwise.

Reimplemented in RAttributeData.

◆ getLineweightInUnits()

double REntityData::getLineweightInUnits ( const QStack< REntity * > &  blockRefStack) const

◆ getMiddlePoints()

QList< RVector > REntityData::getMiddlePoints ( const RBox queryBox = RDEFAULT_RBOX) const
virtual
Returns
Vector of middle points of this entity. Used for snap to middle points.

Reimplemented in RTextBasedData.

◆ getParentId()

RObject::Id REntityData::getParentId ( ) const
inline
Returns
ID of parent entity (block reference for block attribute).

◆ getPointOnEntity()

RVector REntityData::getPointOnEntity ( ) const
virtual
Returns
A point that is on the entity. Used to check if an entity is inside a polygon.

Reimplemented in RToleranceData, RTextBasedData, RHatchData, RBlockReferenceData, RImageData, and RDimensionData.

◆ getPointsWithDistanceToEnd()

QList< RVector > REntityData::getPointsWithDistanceToEnd ( double  distance,
int  from = RS::FromAny,
const RBox queryBox = RDEFAULT_RBOX
) const
virtual
Returns
Points on entity with given distance to either endpoint. Used for snap to points with distance on entity.

Reimplemented in RTextBasedData.

◆ getReferencePoints()

virtual QList<RRefPoint> REntityData::getReferencePoints ( RS::ProjectionRenderingHint  hint = RS::RenderTop) const
pure virtual

◆ getShapes()

virtual QList<QSharedPointer<RShape> > REntityData::getShapes ( const RBox queryBox = RDEFAULT_RBOX,
bool  ignoreComplex = false,
bool  segment = false
) const
inlinevirtual
Returns
Shapes that represent the geometry of this entity.
Parameters
queryBoxLimit returned shapes to query box
ignoreComplexIgnore complex shapes and explode those into simple shapes
segmentSplit up splines into spline segments

Reimplemented in RTextBasedData, RPolylineData, RSplineData, RViewportData, REllipseData, RArcData, RToleranceData, RLeaderData, RLineData, RDimOrdinateData, RHatchData, RXLineData, RRayData, RSolidData, RImageData, RDimRotatedData, RDimDiametricData, RDimRadialData, RBlockReferenceData, RCircleData, RDimAngularData, RPointData, and RDimAlignedData.

◆ getType()

◆ getVectorTo()

RVector REntityData::getVectorTo ( const RVector point,
bool  limited = true,
double  strictRange = RMAXDOUBLE
) const
virtual
Returns
The distance vector from this entity to the given point.
Parameters
pointthe point to which the distance was measured
limitedIf true, an invalid vector is returned if the closest point on the entity is outside of the entity (e.g. in the extension line of a line or outside the start / end angle of an arc).

Reimplemented in RBlockReferenceData.

◆ intersectsWith()

bool REntityData::intersectsWith ( const RShape shape) const
virtual
Returns
True if this entity intersects with the given shape, false otherwise.
Todo:
better to pass another entity data object?

Reimplemented in RDimensionData, RTextBasedData, RHatchData, and RImageData.

◆ isInside()

virtual bool REntityData::isInside ( const RBox box) const
inlinevirtual
Returns
True if this entity is completely inside the given box, false otherwise. Only geometry is accounted for, not the line width.

◆ isOnEntity()

bool REntityData::isOnEntity ( const RVector point,
bool  limited = true,
double  tolerance = RDEFAULT_TOLERANCE_1E_MIN4
) const
virtual
Returns
True if the given point is on this entity.

◆ isPointType()

virtual bool REntityData::isPointType ( ) const
inlinevirtual
Returns
True if entity is of point nature (point, pixel based block).

Reimplemented in RBlockReferenceData, and RPointData.

◆ isSane()

◆ isSelected()

virtual bool REntityData::isSelected ( ) const
inlinevirtual
Returns
True if the entity is currently selected. This can for example influence the color in which the entity is exported.

◆ isSelectedWorkingSet()

virtual bool REntityData::isSelectedWorkingSet ( ) const
inlinevirtual
Returns
True if the entity is currently selected to be added to the working set.

◆ isUpdatesEnabled()

virtual bool REntityData::isUpdatesEnabled ( ) const
inlinevirtual
Returns
True if the entity caches are updated when the entity is being exported.

◆ isValid()

◆ mirror() [1/2]

◆ mirror() [2/2]

bool REntityData::mirror ( const RVector axis1,
const RVector axis2
)
virtual

◆ move()

bool REntityData::move ( const RVector offset)
virtual

◆ moveReferencePoint()

virtual bool REntityData::moveReferencePoint ( const RVector referencePoint,
const RVector targetPoint,
Qt::KeyboardModifiers  modifiers = Qt::NoModifier
)
pure virtual

Moves the given reference point to the given target point or does nothing if this entity has no reference point as the given location.

Returns
True if a reference point has been moved successfully, false otherwise.

Implemented in RTextBasedData, RDimensionData, RViewportData, REllipseData, RArcData, RDimArcLengthData, RDimAngular2LData, RToleranceData, RLineData, RLeaderData, RXLineData, RDimOrdinateData, RRayData, RDimAngular3PData, RDimLinearData, RHatchData, RSolidData, RBlockReferenceData, RImageData, RDimDiametricData, RDimRadialData, RCircleData, RDimRotatedData, RPointData, RDimAngularData, RPolylineData, RSplineData, and RDimAlignedData.

◆ rotate()

◆ scale() [1/2]

◆ scale() [2/2]

bool REntityData::scale ( double  scaleFactor,
const RVector center = RDEFAULT_RVECTOR
)
virtual

◆ scaleVisualProperties()

void REntityData::scaleVisualProperties ( double  scaleFactor)
virtual

◆ setAutoUpdatesBlocked()

void REntityData::setAutoUpdatesBlocked ( bool  on)

◆ setBlockId()

virtual void REntityData::setBlockId ( RBlock::Id  blockId)
inlinevirtual

◆ setColor()

void REntityData::setColor ( const RColor color)
inline

◆ setDocument()

void REntityData::setDocument ( RDocument document)
inline

◆ setDrawOrder()

virtual void REntityData::setDrawOrder ( int  drawOrder)
inlinevirtual

Sets the draw order of this entity.

◆ setLayerId()

virtual void REntityData::setLayerId ( RLayer::Id  layerId)
inlinevirtual

◆ setLayerName()

void REntityData::setLayerName ( const QString &  layerName)

◆ setLinetypeId()

virtual void REntityData::setLinetypeId ( RLinetype::Id  linetypeId)
inlinevirtual

Sets the linetype of this entity to the given linetype ID.

See also
RDocument::getLinetypeId

◆ setLinetypePattern()

void REntityData::setLinetypePattern ( const RLinetypePattern p)
virtual

◆ setLinetypeScale()

virtual void REntityData::setLinetypeScale ( double  linetypeScale)
inlinevirtual

◆ setLineweight()

void REntityData::setLineweight ( RLineweight::Lineweight  lineweight)
inline

◆ setParentId()

virtual void REntityData::setParentId ( RObject::Id  parentId)
inlinevirtual

◆ setSelected()

virtual void REntityData::setSelected ( bool  on)
inlinevirtual

Selects or deselects this entity.

Reimplemented in RTextBasedData.

◆ setSelectedWorkingSet()

virtual void REntityData::setSelectedWorkingSet ( bool  on)
inlinevirtual

Selects or deselects this entity for addition to the current working set.

◆ setUpdatesEnabled()

void REntityData::setUpdatesEnabled ( bool  on)
inline

Enables / disables cache updates.

◆ setZ()

void REntityData::setZ ( double  z)
virtual

◆ stretch()

bool REntityData::stretch ( const RPolyline area,
const RVector offset
)
virtual

Stretches the end points of this entity that are inside area by offset.

Reimplemented in RLeaderData, RDimOrdinateData, RDimLinearData, and RHatchData.

◆ to2D()

void REntityData::to2D ( )
virtual

Reimplemented in RBlockReferenceData, and RViewportData.

◆ update()

virtual void REntityData::update ( ) const
inlinevirtual

Entities can reimplement this function to invalidate any internal cache (mark the entity as dirty).

Reimplemented in RTextBasedData, RDimensionData, RSplineData, RHatchData, RBlockReferenceData, RLeaderData, and RToleranceData.

Friends And Related Function Documentation

◆ REntity

friend class REntity
friend

Member Data Documentation

◆ autoUpdatesBlocked

bool REntityData::autoUpdatesBlocked
protected

Block auto updates is true during imports, undo and redo.

◆ blockId

RBlock::Id REntityData::blockId
protected

◆ color

RColor REntityData::color
protected

◆ document

RDocument* REntityData::document
protected

◆ drawOrder

int REntityData::drawOrder
protected

◆ layerId

RLayer::Id REntityData::layerId
protected

◆ linetypeId

RLinetype::Id REntityData::linetypeId
protected

◆ linetypeScale

double REntityData::linetypeScale
protected

◆ lineweight

RLineweight::Lineweight REntityData::lineweight
protected

◆ parentId

RObject::Id REntityData::parentId
protected

◆ selectionStatus

bool REntityData::selectionStatus
protected

◆ selectionStatusWorkingSet

bool REntityData::selectionStatusWorkingSet
protected

◆ updatesEnabled

bool REntityData::updatesEnabled
protected

The documentation for this class was generated from the following files:
