Suggestion for Dimension Location setting

Please use this forum to post feedback and suggestions related to QCAD.

Moderator: andrew

Post Reply
User avatar
Clive
Moderator
Posts: 1329
Joined: Thu Aug 25, 2011 9:28 pm
Location: UK

Suggestion for Dimension Location setting

Post by Clive » Wed Nov 19, 2014 1:32 pm

When placing dimensions in drawings it would be easier and more useful to have an option in the Dimension settings dialogs to set an offset distance from the entity we are dimensioning - especially if we want quick uniform dimensioning on lots of objects throughout the entire draft.

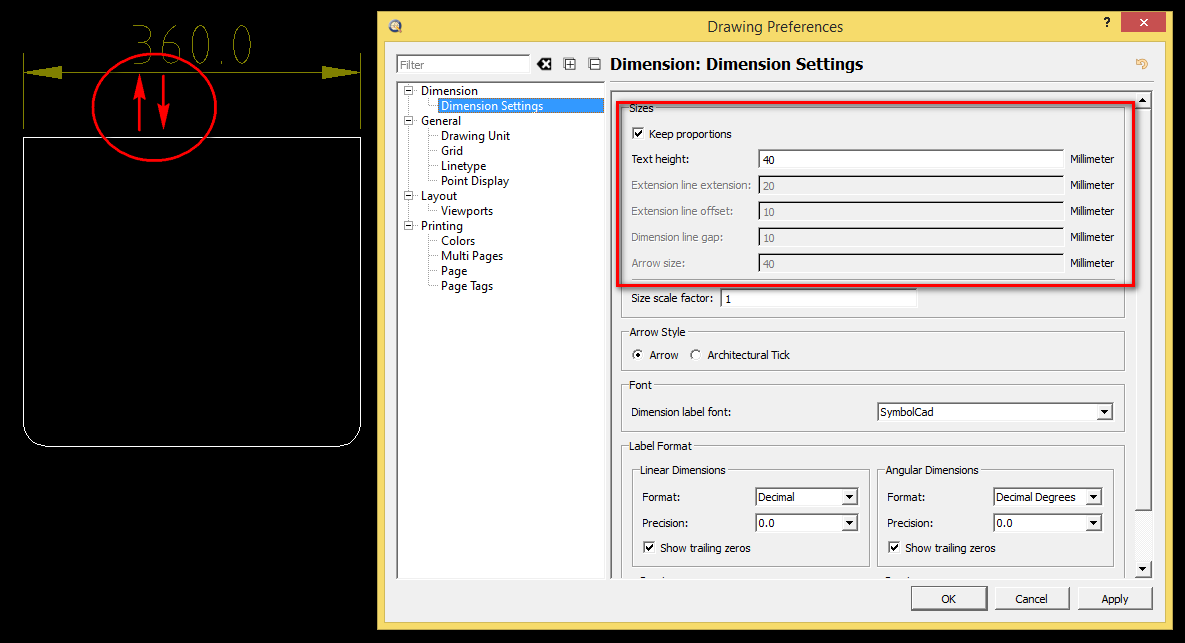

So in my example below I could have set a required distance in the dimension settings dialog and QCAD would then dynamically set all my dimesion loaction offset distances accordingly 8).
Dimension Setting Request.png
Dimension Setting Request.png (29.23 KiB) Viewed 4188 times
Hope it makes sense to all :) .
For the best support please state your operating system, QCAD version and add any supporting DXF/DWG files, screenshots etc...
