FS#2099 : DIM Label, Square Symbol doesn't adopt layer attributes

Quick Actions

View Dependency Graph

Status Assigned
Percent Complete
0%
Task Type Bug Report
Category QCAD (main)
Assigned To

andrew
Operating System All
Severity Low
Priority Very Low
Reported Version 3.24.3
Due in Version Undecided
Due Date Undecided
Votes
Private

Attached to Project: QCAD Bugtracker
Opened by Husky - 13.07.2020
Last edited by Husky - 13.07.2020

FS#2099 - DIM Label, Square Symbol doesn't adopt layer attributes

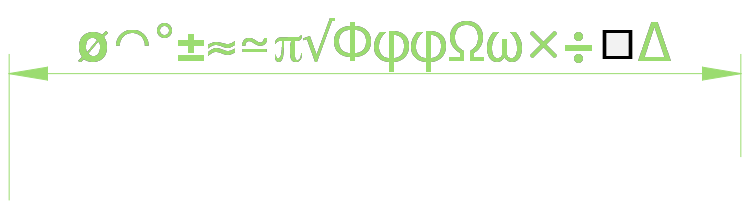

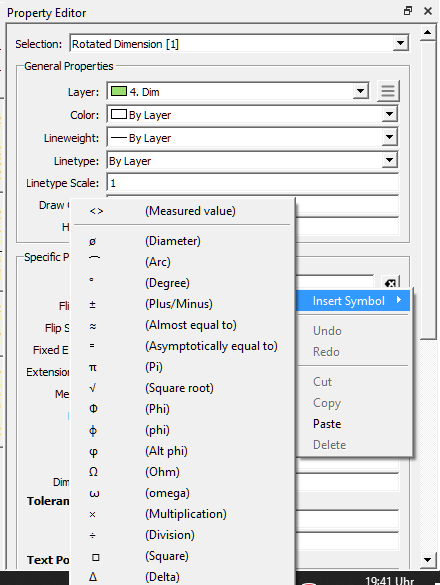

The square symbol offered as symbol in DIM label is the only symbol which doesn’t adopt the layer color.
If I print a drawing in full color it leads to a black symbol in an otherwise colored dimension.

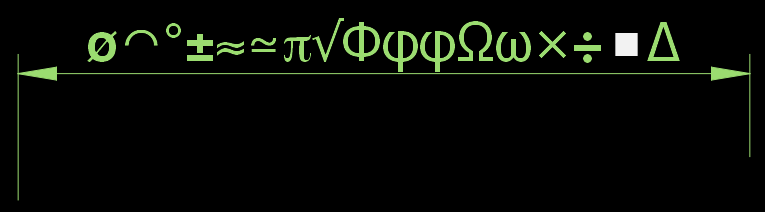

It is also the only symbol which has a solid filling what is confusing when you work with it in Model_Space ...




Comments (0)
Related Tasks (0/0)

	Tasks related to this task (0)
