FS#1926 - No negative coordinate values ? (DO command)
Just starting with QCAD, for some hours now - really excellent user interface (compared to other low budget CADs, like DCAD, or BeckerCAD...) !

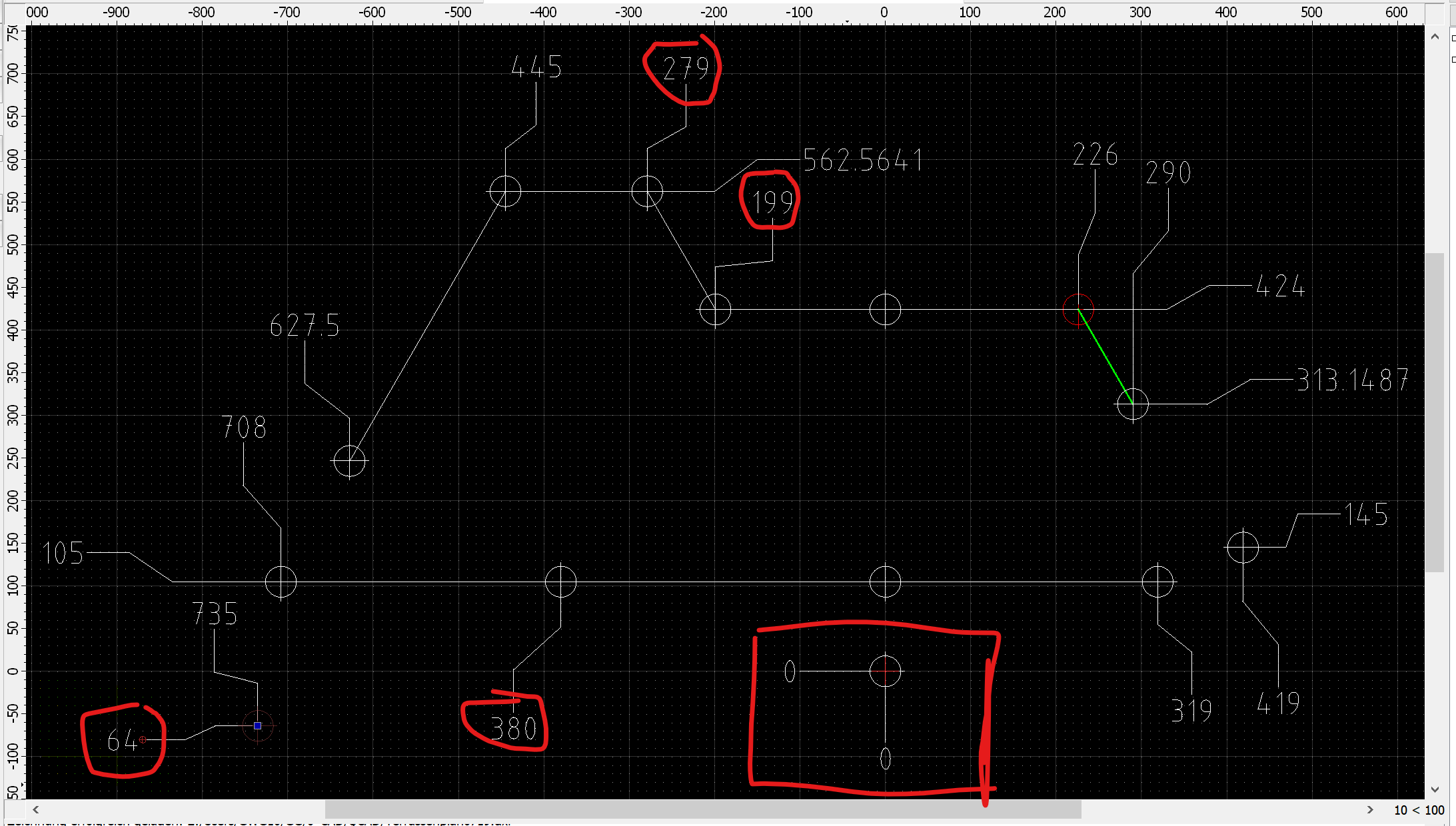

Surprisingly, point coordinates - entered via the command line, and shown with correct positions on the drawing- are not displayed correctly with the ‘dimordinate’ (DO) command.
There are no negative values, even when the center point (0;0) is right in the middle of the drawing, so points left and below should have !
GW.G
Loading...
Available keyboard shortcuts
- Alt + ⇧ Shift + l Login Dialog / Logout
- Alt + ⇧ Shift + a Add new task
- Alt + ⇧ Shift + m My searches
- Alt + ⇧ Shift + t focus taskid search
Tasklist
- o open selected task
- j move cursor down
- k move cursor up
Task Details
- n Next task
- p Previous task
- Alt + ⇧ Shift + e ↵ Enter Edit this task
- Alt + ⇧ Shift + w watch task
- Alt + ⇧ Shift + y Close Task
Task Editing
- Alt + ⇧ Shift + s save task
This is intended behaviour. The distance to the reference point is measured.
It might be possible to add an option / preference / entity property in a future version to allow for negative values (depending on support in other CAD systems).
Changed to feature request.
Ordinates are strickt positive.
Most CAD get this question, some adapt.
