Separate Coordinate Display from Drawing Dimensions

Please use this forum to post feedback and suggestions related to QCAD.

Moderator: andrew

Post Reply
zak
Junior Member
Posts: 11
Joined: Mon Apr 29, 2013 10:51 pm

Separate Coordinate Display from Drawing Dimensions

Post by zak » Wed Feb 22, 2017 5:19 pm

According to the changelog for version 3.9.3 the info tools and coordinate display are tied to the current drawing dimensions. For much of my use I prefer to have the dimensions format different. The main reason is that my customers want to see the format in fractions, but when I am drawing I'd rather see the decimal format to make sure what I am drawing is accurate. So I'd really be interested in seeing a separate full configuration of the display and info coordinates.

I do recognize that it is possible to change them, but it's not that convenient to do, additionally as I automate creating prints, it might be a bit tricky to make sure that the dimensions are properly formatted when running the dwg2pdf tool.

User avatar
andrew
Site Admin
Posts: 9019
Joined: Fri Mar 30, 2007 6:07 am

Re: Separate Coordinate Display from Drawing Dimensions

Post by andrew » Mon Feb 27, 2017 10:00 am


bluefuzz
Newbie Member
Posts: 3
Joined: Fri Jun 10, 2016 3:52 pm

Re: Separate Coordinate Display from Drawing Dimensions

Post by bluefuzz » Tue Aug 22, 2017 9:52 am

I'd like to add my vote to this feature.

I mostly use Qcad to draw guitars and other luthiery related items. In the wonderful world of luthiery it is customary to mix metric and imperial measurements when talking about different parts of instruments. Bizarre and irritating it is but nevertheless the norm within the community. For example, the dimensions of classical guitars, being historically a european instrument, are usually expressed in millimetres whereas steel string guitars, having been developed in America, use Imperial.

To add to the confusion, certain dimensions such as scale lengths, string thickesses etc. are invariably expressed in inches even in otherwise metric using countries. It is not unusual to see both thousandths of an inch, fractional inches and millimetres on the same guitar plan - in fact it is expected!

I would find it very useful when drawing in millimetres, to optionally add ' mm' after each dimension as a default. It seems it is currently only possible to see the measurement type when using inches? I would also find it useful to override any given dimension display to thousands of an inch or fractional inch (or whatever) and have Qcad automatically calculate the conversion.

Cheers
Ian

User avatar
Husky
Moderator/Drawing Help/Testing
Posts: 4931
Joined: Wed May 11, 2011 9:25 am
Location: USA

Re: Separate Coordinate Display from Drawing Dimensions

Post by Husky » Tue Aug 22, 2017 11:07 pm

Hi guys - I'm sitting in the same boat like you and can't wait to see the mentioned feature request implemented.

Till then I like to share my workarounds. Not perfect but maybe helpful ...
bluefuzz wrote:It seems it is currently only possible to see the measurement type when using inches?
Correct. But you can "trick" QCAD
If you launch the Dim Tool an option bar pops up. Use the Label field and fill in

<> mm

<> means QCAD has to write in the measured Value and mm is just a suffix for this Value ...

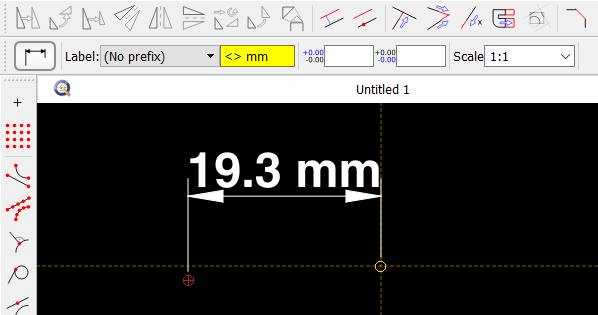

That looks like this:
bluefuzz wrote:I would also find it useful to override any given dimension display to thousands of an inch or fractional inch (or whatever) and have Qcad automatically calculate the conversion.
Maybe there are more possibility's than you thought ...

Changing the dimensions from 5 ¾ to 5.75 is possible within the Drawing Preferences (Fraction/Decimal),
Change and convert the units (mm to inch etc) during you are working on a drawing is possible with Menu / Edit / Convert Drawing Unit,

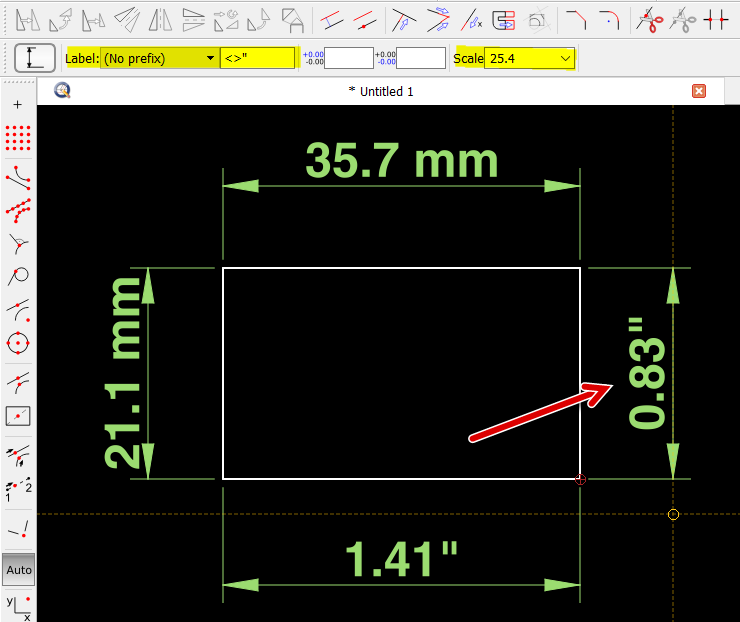

Working in mm and in need to but an additional value in in inch can be done by scaling the value ....

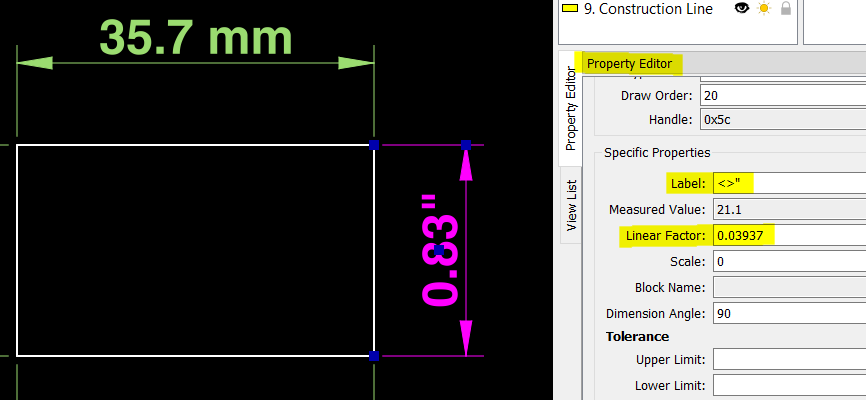

... or afterwards with help of the Property Editors.
Hope this brief Info helps .....
Work smart, not hard: QCad Pro
Win10/64, QcadPro, QcadCam version: Current.
If a thread is considered as "solved" please change the title of the first post to "[solved] Title..."

bluefuzz
Newbie Member
Posts: 3
Joined: Fri Jun 10, 2016 3:52 pm

Re: Separate Coordinate Display from Drawing Dimensions

Post by bluefuzz » Wed Aug 23, 2017 8:18 am

Thanks Husky. Those are some good tricks that will certainly help the flexibility of dimensioning for me. But some more robust application tools would still be appreciated.
