Dimension number position and leader line
Posted: Mon Sep 26, 2022 12:34 pm
by ra_vy
Hi,

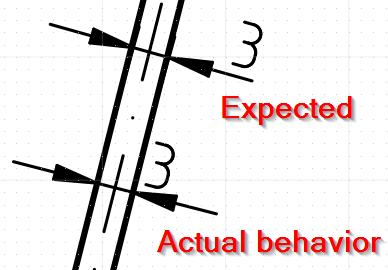

is it possible to setup QCAD to position the dimension number not over the arrow but rather over the leader line?
Like this:
- qcad_dims.png (24.2 KiB) Viewed 4433 times
On a slightly different topic and i suppose this would be more of a feature request: Is is possible to have the dimension number switch sides automatically while the dimension is being placed? I think the current behavior is the dimension is fixed to the right side. (demonstration from another cad sw):
- dim_sides.gif (87.64 KiB) Viewed 4433 times
Thanks for any input!
Re: Dimension number position and leader line
Posted: Mon Sep 26, 2022 4:22 pm
by CVH
ra_vy wrote: ↑Mon Sep 26, 2022 12:34 pm
is it possible to setup QCAD to position the dimension number not over the arrow but rather over the leader line?
Not that I know, but you can edit a dimension and drag the text to wherever you want.
ra_vy wrote: ↑Mon Sep 26, 2022 12:34 pm
Is is possible to have the dimension number switch sides automatically while the dimension is being placed?
Yes, that depends on what point you click first.
When it fits in between, then centered is dominant.
I was also used to the 4 step process: first/second extension, dimension line and then the text position.
What you show in the demonstration can be achieved with editing a dimension.
The outside 'leader' length itself is fixed =arrow size.
Regards,
CVH
Re: Dimension number position and leader line
Posted: Tue Sep 27, 2022 10:25 am
by ra_vy
Thanks for the answers.
CVH wrote: ↑Mon Sep 26, 2022 4:22 pm
ra_vy wrote: ↑Mon Sep 26, 2022 12:34 pm
is it possible to setup QCAD to position the dimension number not over the arrow but rather over the leader line?
Not that I know, but you can edit a dimension and drag the text to wherever you want.
Isn't the current way invalid though? From the standardization perspective, i think it is. I just checked with ISO 129-1 and it says:
5.6.3 a) dimensional values can be above the extension of the dimension line beyond one of the terminators, if
space is limited (see Figure 25);
- 2022-09-27 11_13_57.png (3.32 KiB) Viewed 4379 times
CVH wrote: ↑Mon Sep 26, 2022 4:22 pm
ra_vy wrote: ↑Mon Sep 26, 2022 12:34 pm
Is is possible to have the dimension number switch sides automatically while the dimension is being placed?
Yes, that depends on what point you click first.
Thanks, this makes sense, i didn't realize.
CVH wrote: ↑Mon Sep 26, 2022 4:22 pm
The outside 'leader' length itself is fixed =arrow size.
So when we need the dimension number be displayed in the outside, we also need to add the extension line manually to have it reach the end of the dimension number in case it is longer than the dimension arrow. This feels very lengthy.. Maybe i should try proposing this to be implemented in the relevant forum section?
Re: Dimension number position and leader line
Posted: Tue Sep 27, 2022 10:40 am
by CVH
ra_vy wrote: ↑Tue Sep 27, 2022 10:25 am
This feels very lengthy.. Maybe i should try proposing this to be implemented in the relevant forum section?
Dxf supports auto lengthening the 'Leader' side.
One can always file a feature request at:
https://www.ribbonsoft.com/bugtracker/
You may need to create an account there.
Regards,
CVH
