(solved) engineering drawing cutting plane
Posted: Fri Feb 03, 2023 2:50 pm
by bambuko
What's the best way to create (as a single block, rather than collection of lines and text) cutting plane lines and letters
as shown on top half of attached sketch (A-A).
The only way I can think of doing it is by creating a block?
but is there a better way, please?

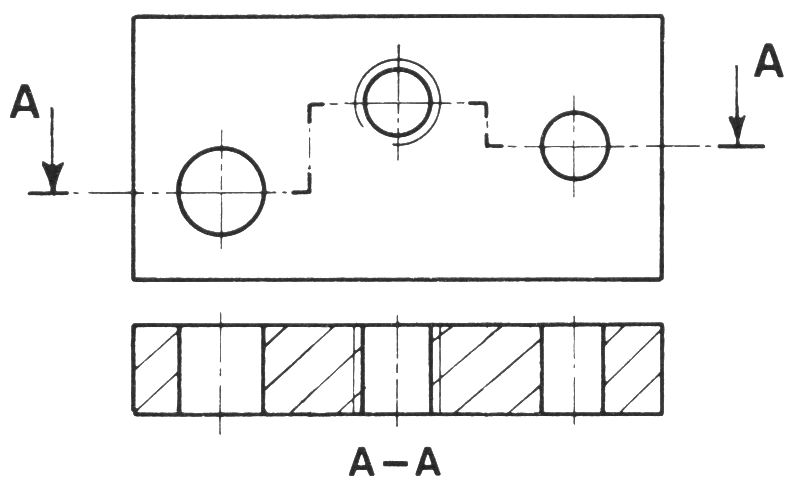

- Figure 1.PNG (74.22 KiB) Viewed 3672 times
Code: Select all
QCAD Professional
Version: 3.27.9.0 (3.27.9)
Internet: QCAD.org
Build Date: Jan 11 2023
Revision: a88789f
Qt Version: 5.8.0
Architecture: x86_64
Compiler: gcc 4.8.1
Re: engineering drawing cutting plane
Posted: Fri Feb 03, 2023 11:02 pm
by CVH
bambuko wrote: ↑Fri Feb 03, 2023 2:50 pm
The only way I can think of doing it is by creating a block?
Yep, the only way of grouping things under QCAD.
Groups of entities are not supported.
Regards,
CVH
Re: engineering drawing cutting plane
Posted: Fri Feb 03, 2023 11:33 pm
by Husky
bambuko wrote: ↑Fri Feb 03, 2023 2:50 pm
... as shown on top half of attached sketch (A-A).
Just for the records - I don't see the need for a cutting plan on this example. Just a Front view would give all needed information.
- Husky-2023.02.03-04.png (19.08 KiB) Viewed 3613 times
bambuko wrote: ↑Fri Feb 03, 2023 2:50 pm
The only way I can think of doing it is by creating a block?
Me too. I work with blocks and Attributes.

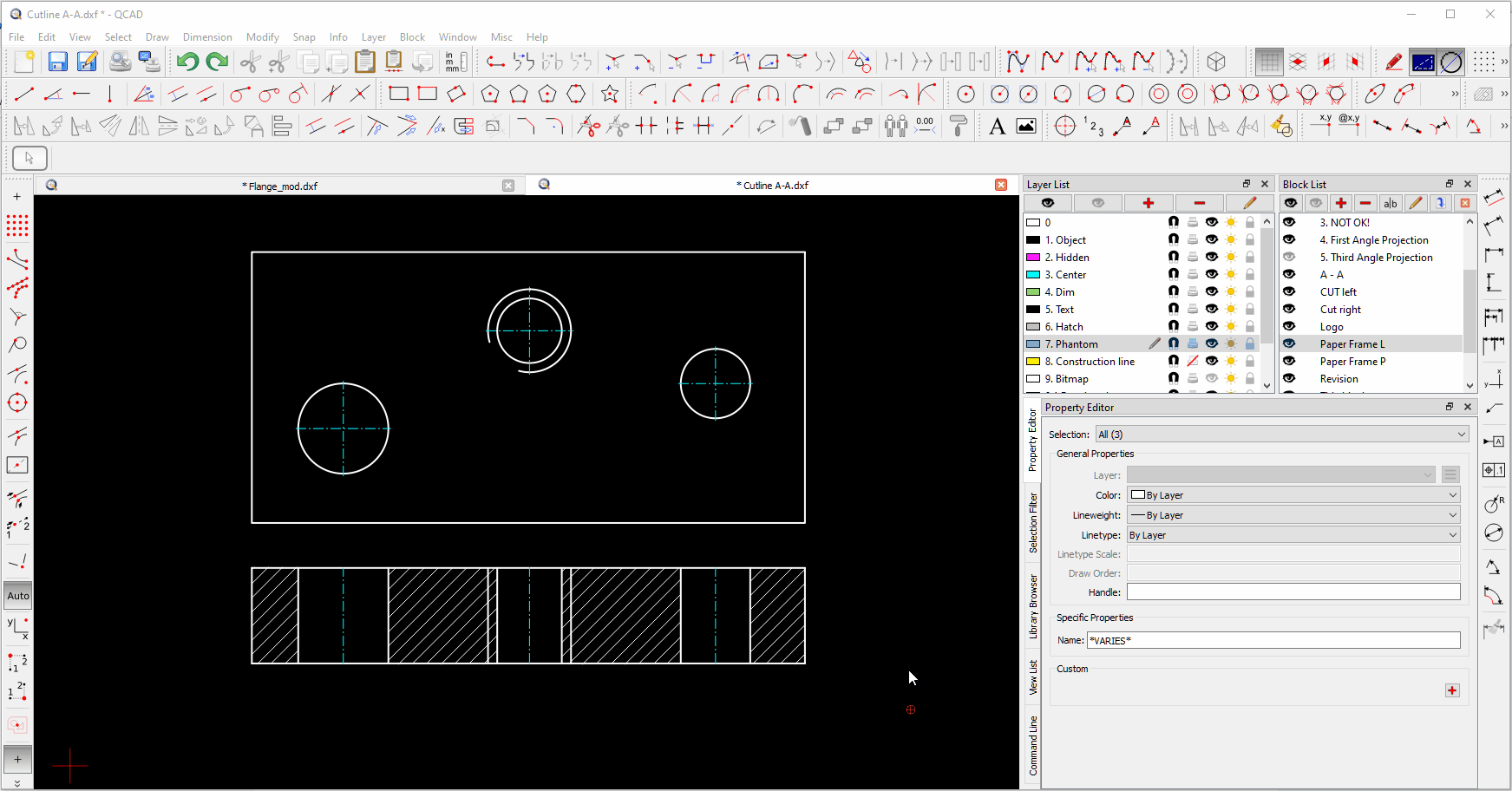

- Cutting plane.gif (1.48 MiB) Viewed 3613 times
bambuko wrote: ↑Fri Feb 03, 2023 2:50 pm
but is there a better way, please?
Maybe someone else in the forum knows a better way ...
Re: engineering drawing cutting plane
Posted: Sat Feb 04, 2023 11:03 am
by bambuko
Thank you for the confirmation guys.
I thought it was the case. but it is always better to ask...
