Spline tips

Post by robjuda » Thu Sep 21, 2017 9:04 am

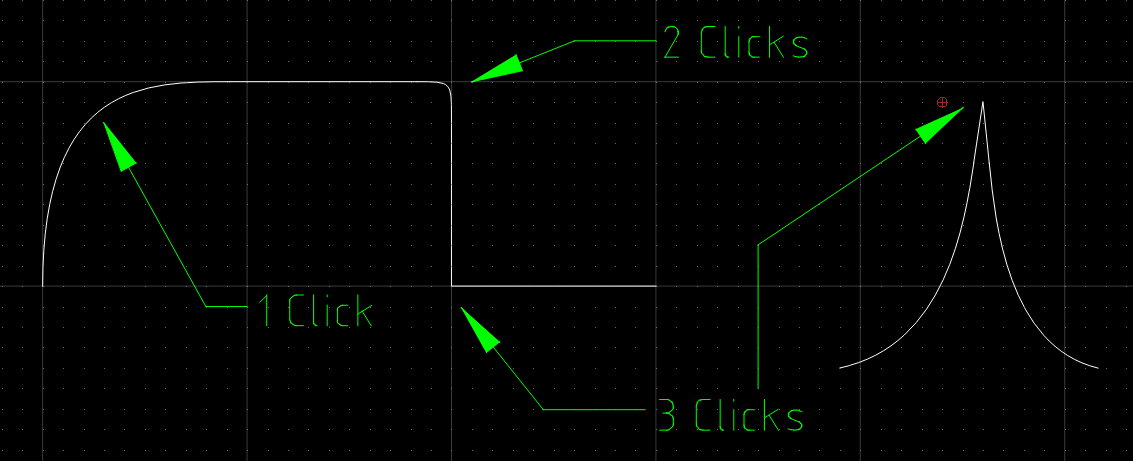

I could not find this in the manual, but you can draw 90 degr. corners and sharp corners with the spline controlpoints tool. 1 click gives the usual smooth corner, two clicks gives a narrow rounded corner, and 3 clicks gives a sharp corner, or a 90 degr. corner.
