Im using QCAD pro 3.27.1.0
- Screenshot 2024-07-04 at 11.17.36.png (154.17 KiB) Viewed 41265 times
- Screenshot 2024-07-04 at 11.17.36.png (154.17 KiB) Viewed 41265 times
- Screenshot 2024-07-04 at 11.17.36.png (154.17 KiB) Viewed 41265 times

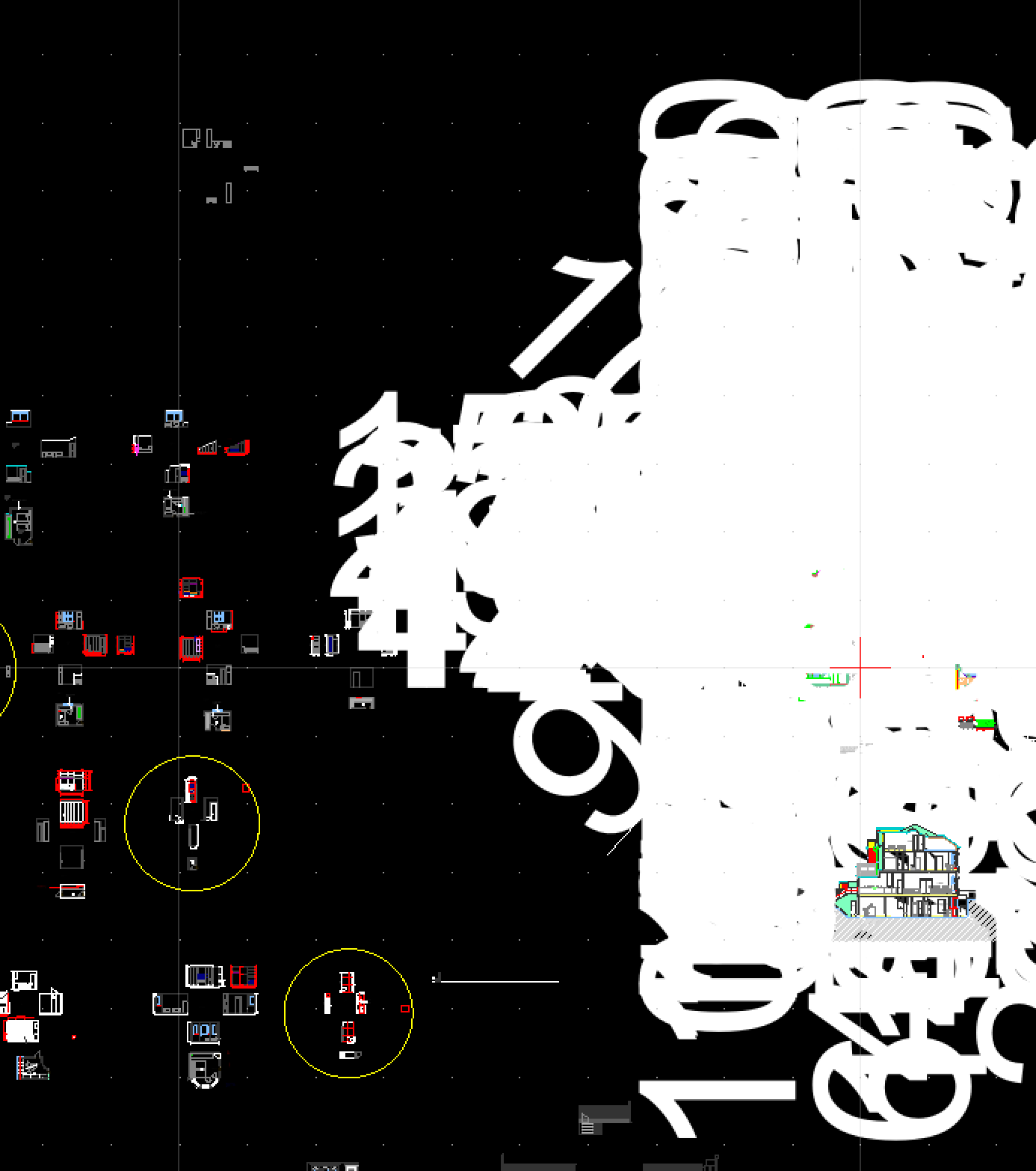

Dimensions are too large when i open a file
Moderator: andrew
Forum rules
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
Always indicate your operating system and QCAD version.
Attach drawing files and screenshots.
Post one question per topic.
-
sdesign
- Registered Member
- Posts: 1
- Joined: Thu Jul 04, 2024 10:52 am
Dimensions are too large when i open a file
ive opened a file that my coworker has worked on in Autocad. and the dimensions are huge. how can I adjust their size. my old dimensions- which were on the drawing previously, are a good size .
Im using QCAD pro 3.27.1.0
Im using QCAD pro 3.27.1.0
- Attachments
-
- Screenshot 2024-07-04 at 11.18.08.png (69.37 KiB) Viewed 41265 times
-
andrew
- Site Admin
- Posts: 8766
- Joined: Fri Mar 30, 2007 6:07 am
Re: Dimensions are too large when i open a file
If not all dimensions use the same size, some of them might have style overrides. These are custom, per dimension entity settings for the label size, arrow size, etc.
You can reset all style overrides as follows:
Select > Select All
Dimension > Remove Style Overrides
After that, you can adjust the sizes for all dimensions in the drawing under:
Edit > Drawing Preferences > Dimension > Dimension Settings
You can reset all style overrides as follows:
Select > Select All
Dimension > Remove Style Overrides
After that, you can adjust the sizes for all dimensions in the drawing under:
Edit > Drawing Preferences > Dimension > Dimension Settings
