FS#2551 - Clipping of viewports affects cursor and reference points
The last version (3.29.4) present a very important issue.

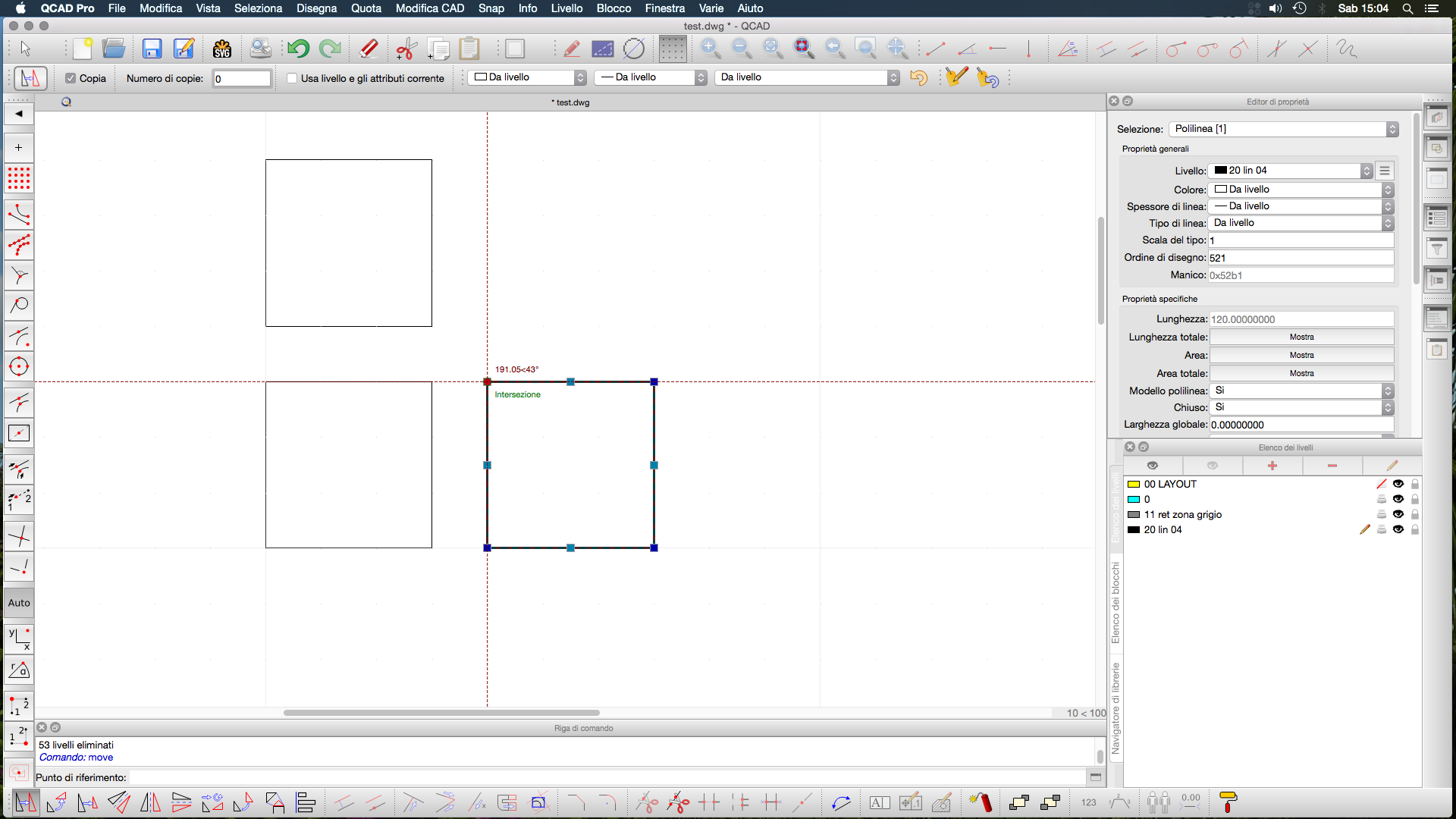

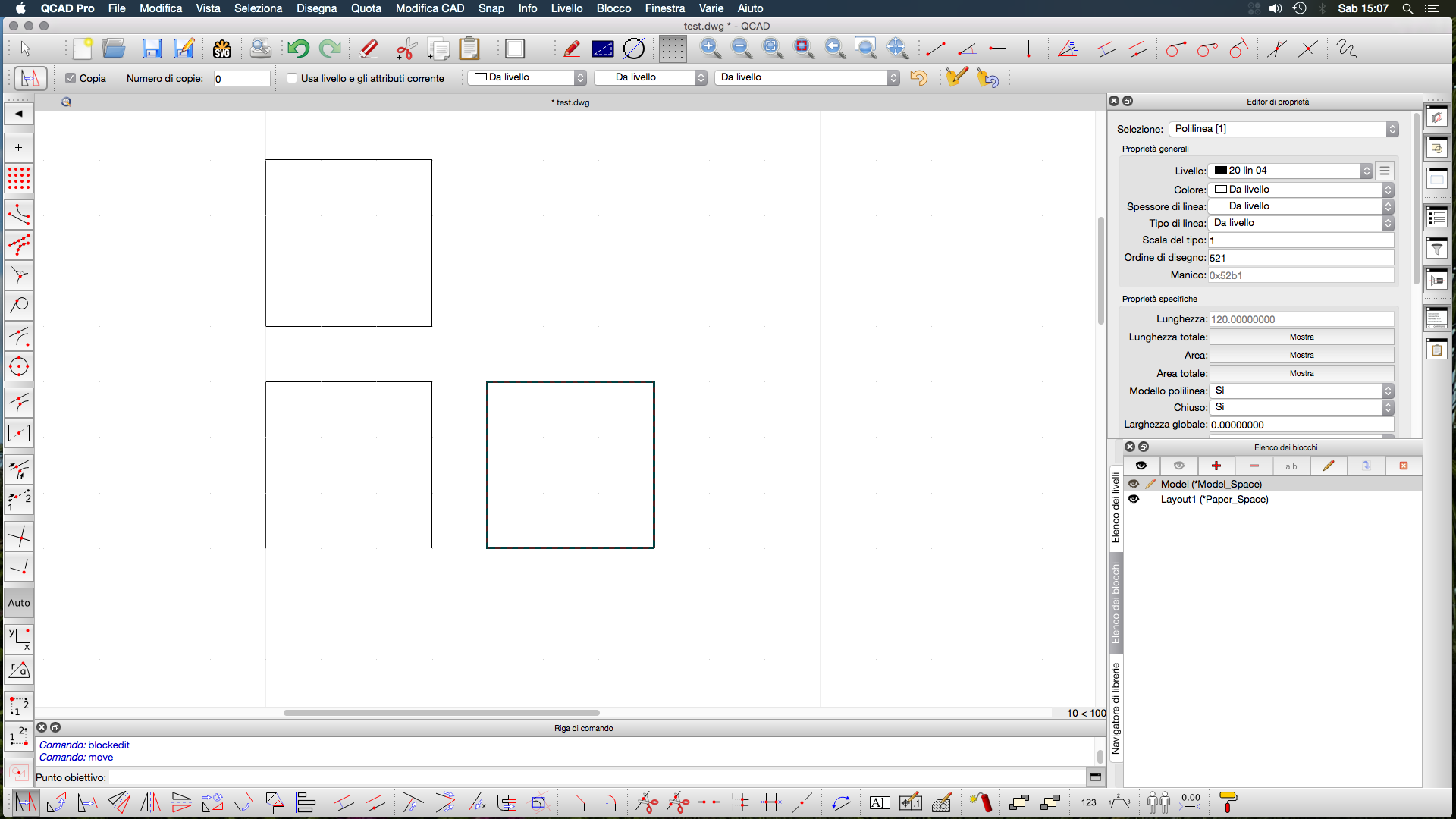

When we work with a “complicated” file (about >1MB or up see attachment test.dwg) the cursor and selected object not work fine after move some layout windows in Paper_Space: disappear coordinates informations and snap nodes. (see attachment before.png an after.png)
This issue is present in all Qcad version (Linux, Mac-intel, Mac-silicon, Windows).
The last working-fine version is 3.28.2
I’m a enthusiastic Qcad user and I hop that this issue will be fixed early!
Regards
Arch. Riccardo Beduschi
test.dwg.zip
Loading...
Available keyboard shortcuts
- Alt + ⇧ Shift + l Login Dialog / Logout
- Alt + ⇧ Shift + a Add new task
- Alt + ⇧ Shift + m My searches
- Alt + ⇧ Shift + t focus taskid search
Tasklist
- o open selected task
- j move cursor down
- k move cursor up
Task Details
- n Next task
- p Previous task
- Alt + ⇧ Shift + e ↵ Enter Edit this task
- Alt + ⇧ Shift + w watch task
- Alt + ⇧ Shift + y Close Task
Task Editing
- Alt + ⇧ Shift + s save task
If I understand correctly, the mouse cursor crosshairs are not showing when you move the mouse through the graphics view, correct?
If so, I cannot reproduce this problem here on any system with that file.
Can you try to backup and then reset your configuration to see if the problem persists?
Resetting the QCAD Configuration:
https://qcad.org/en/tutorial-resetting-the-qcad-configuration
The problem persist even after the reset og Qcad3.ini
I'll try to explain the problem better:
1. create a new draw and drawing something ex. lines
2. make a layout window (command VT)
3. position the layout window on sheet in Layout1 (Paper_Space)
4. do some operation as move, rotate, enlarge the layout window
5. return on Model_Space
6. select an oblect an try to move it: the crosshairs, the little blue (and red) snap point of the oblect disappeared.
NB. this problem happened only AFTER make a layout window. if you work only in model_space everything work fine. (ps sorry for my english...)
Thanks. This should be fixed for the next release.
