Base class for all 2D Centroid tools. More...

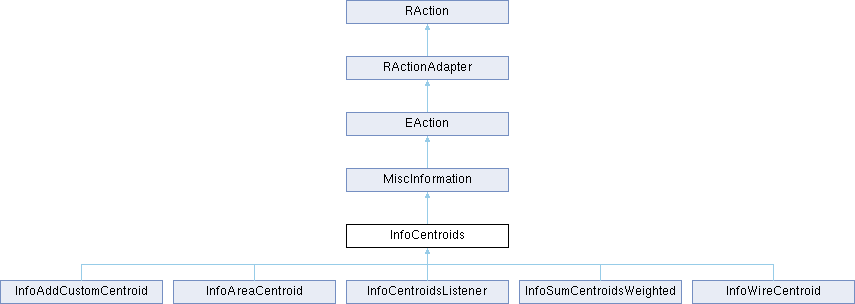

Inheritance diagram for InfoCentroids:

Public Member Functions
void	addCentroidMarker (void doc, void op, void dataC, void radius, void preview)
	Adding 2D Centroid marker to a given operation.

void	addTextLabel (void doc, void op, void pos, void offset, void text)
	Adding text labels to a given operation.

void	advanceSelection (void di, void transaction)
	Advance the selection to the added marker (polyline).

void	beginEvent ()
	Called when the user starts this action by clicking a button, choosing a menu, entering a command, etc.

void	formatCmdValue (void value, void digits)
	Format a value textual for reporting on the command History.

void	formatCoordinate (void valueX, void valueY)
	Format a pair of values textual as coordinate.

void	formatLabelValue (void value, void decPnt, void digits, void trailingZ)
	Format a value textual for a 2D Centroid label.

void	formatPropValue (void value)
	Format a value textual for storing properties.

void	getMarkerSize ()
	Defines a 2D Centroid marker size based on overall box and drawing font size.

void	getRunningSumKBK (void list)
	Sums values in an array by 'A generalized Kahan–Babuška-Summation-Algorithm' proposed by Klein.

void	getTitle ()

void	InfoCentroids (void guiAction)

void	mergeBoxWith (void item)
	Accumulate a given item to an overall box size.

Public Member Functions inherited from MiscInformation
void	getTitle ()

void	MiscInformation (void guiAction)

Public Member Functions inherited from EAction
void	applyCommand (void event, void preview)
	High level event triggered when a command line command should be applied or previewed.

void	applyOperation ()
	Applies the operation returned by this.getOperation().

void	commandEvent (void event)
	Default implementation.

void	commandEventPreview (void event)
	Default implementation.

void	complementOperation (void op)
	Can be reimplemented to complement the operation of an action.

void	coordinateEvent (void event)
	Default implementation.

void	coordinateEventPreview (void event)
	Default implementation.

void	createDialog (void uiFile, void parent)
	Creates a new dialog based on the given UI file with the given parent.

void	createWidget (void uiFile, void parent)
	Creates a new widget based on the given UI file with the given parent.

void	EAction (void guiAction)

void	enterEvent ()
	Called when user presses enter.

void	entityPickEvent (void event)
	Default implementation.

void	entityPickEventPreview (void event)
	Default implementation.

void	escapeEvent ()
	Called when the user presses Escape or clicks the right mouse button.

void	finishEvent ()
	Called when this action is terminated.

void	getAuxPreview ()
	Called by updatePreview.

void	getClassName ()

void	getDocumentInterface ()

void	getEntityId (void event, void preview, void selectable)

void	getGraphicsView ()

void	getGraphicsViews ()

void	getHighlightedEntities ()
	Called by updatePreview.

void	getOperation (void preview)
	Called by updatePreview and applyOperation.

void	getScales ()

void	getToolTitle ()

void	handlePreviewError ()
	Called by updatePreview.

void	hideOptionsToolBarWidgets (void widgets, void noSyncWidgets)
	Hides all widgets in the options tool bar which are shown in the tool dialog instead.

void	hideUiOptions (void saveToSettings)
	Hides the UI options of this action.

void	initDialog (void dialog)
	Called before dialog is shown.

void	initState ()
	Called to initialize a new state of this action.

void	initUiOptions (void resume, void optionsToolBar, void forDialog)
	Overwrite to initialize combo boxes and other UI elements of the options tool bar.

void	isEntityEditable (void e)

void	isEntitySnappable (void e)

void	keyPressEvent (void event)
	Called when the user presses a key.

void	keyReleaseEvent (void event)
	Called when the user releases a key.

void	mouseDoubleClickEvent (void event)

void	mousePressEvent (void event)
	Does nothing.

void	mouseReleaseEvent (void event)

void	pickCoordinate (void event, void preview)
	High level event triggered when a coordinate was specified by the user of a coordinate specification should be previewed.

void	pickEntity (void event, void preview)
	High level event triggered when an entity was picked by the user or to preview picking an entity.

void	postOperation (void transaction)
	Can be reimplemented to work with the transaction returned by the operation.

void	propertyChangeEvent (void event)
	Allows all actions to handle property change events.

void	resumeEvent ()
	Called whenever the action resumes its operation, for example after it was temporary suspended for another action.

void	setArrowCursor ()
	Sets the current cursor of the current document interface (all views attached to it) to the normal arrow cursor.

void	setCommandPrompt (void prompt)

void	setCrosshairCursor ()
	Sets the current cursor of the current document interface (all views attached to it) to crosshair cursor.

void	setCursor (void cursor, void name)

void	setLeftMouseTip (void tip)

void	setRightMouseTip (void tip)

void	setState (void state)
	Set the state of this action.

void	setUiOptions (void uiFile, void split)
	Sets the UI options toolbar content for this tool.

void	showDialog ()
	Show dialog to enter some or all of the options.

void	showUiOptions (void resume, void restoreFromSettings)
	Shows the UI options of this action if this.uiFile is set.

void	simulateMouseMoveEvent ()

void	slotReset ()
	Called if the user clicks the reset button of an action.

void	suspendEvent ()
	Called whenever the action is suspended, for example if another action is started while this action is active.

void	updatePreview (void clear)
	Updates the preview based on the operation returned by getOperation and the auxiliary construction returned be getAuxPreview.

Public Member Functions inherited from RActionAdapter
virtual void	commandEvent (RCommandEvent &)
	Called when a command is entered in the command line.

virtual void	commandEventPreview (RCommandEvent &)
	Called when a command is being edited in the command line.

virtual void	coordinateEvent (RCoordinateEvent &)
	Called for every coordinate event.

virtual void	coordinateEventPreview (RCoordinateEvent &)
	Called if the action is in `PickCoordinate` mode and the mouse is moved around.

virtual void	entityPickEvent (REntityPickEvent &)

virtual void	entityPickEventPreview (REntityPickEvent &)

virtual void	keyPressEvent (QKeyEvent &)

virtual void	keyReleaseEvent (QKeyEvent &)

virtual void	mouseDoubleClickEvent (RMouseEvent &)
	Called on mouse double click events.

virtual void	mouseMoveEvent (RMouseEvent &)
	Called on mouse move events.

virtual void	mousePressEvent (RMouseEvent &)
	Called on mouse press events.

virtual void	mouseReleaseEvent (RMouseEvent &)
	Called on mouse release events.

virtual void	panGestureEvent (QPanGesture &)
	Called on pan gesture events.

virtual void	pinchGestureEvent (QPinchGesture &)
	Called on pinch gesture events.

virtual void	propertyChangeEvent (RPropertyEvent &)
	Called when the value of a property is modified while this action is active.

	RActionAdapter (RGuiAction *guiAction=NULL)

virtual void	setGraphicsView (RGraphicsView *)
	Called if this action is set as a navigation action of a graphics view.

virtual void	swipeGestureEvent (QSwipeGesture &)
	Called on swipe gesture events.

virtual void	tabletEvent (RTabletEvent &)
	Called on tablet events.

virtual void	wheelEvent (RWheelEvent &)
	Called on mouse wheel events.

virtual void	zoomChangeEvent (RGraphicsView &)
	Called when the zoom factor or offset changed in the given view.

virtual	~RActionAdapter ()

Public Member Functions inherited from RAction
RAction::ClickMode	getClickMode ()

virtual RDocument *	getDocument ()

QList< RGraphicsScene * >	getGraphicsScenes ()

virtual RGuiAction *	getGuiAction ()

RAction *	getOverrideBase ()

RStorage *	getStorage ()

QString	getUniqueGroup ()

bool	hasNoState ()

bool	isOverride ()

bool	isTerminated ()

	RAction (RGuiAction *guiAction=NULL)
	Copyright (c) 2011-2018 by Andrew Mustun.

void	setClickMode (RAction::ClickMode m)
	Sets the current click mode.

virtual void	setDocumentInterface (RDocumentInterface *di)

void	setGuiAction (RGuiAction *guiAction)

void	setNoState (bool on=true)

void	setOverride ()

void	setOverrideBase (RAction *base)

void	setUniqueGroup (const QString &ug)

virtual RVector	snap (RMouseEvent &event, bool preview=false)
	Uses the currently active snap function to snap to the closest object or grid point.

void	terminate ()
	Terminates the action.

virtual	~RAction ()

Additional Inherited Members
Public Types inherited from RAction
enum	ClickMode { PickCoordinate , PickCoordinateNoSnap , PickEntity , PickingDisabled }
	Current mouse click mode. More...

Public Attributes inherited from EAction
int	additionalOptionsToolBars

int	delegate

int	dialogUiFile

int	guiAction

int	includeBasePath

int	optionsToolBarEnabled

int	optOutRelativeZeroResume

int	relativeZeroPos

int	resuming

int	settingsGroup

int	splitUiOptions

int	state

int	uiFile

int	useDialog

int	waitingForContextMenu

Protected Attributes inherited from RAction
RAction::ClickMode	clickMode

RDocumentInterface *	documentInterface

RGuiAction *	guiAction

bool	noState
	Indicates whether this action is stateless (i.e.

bool	override

RAction *	overrideBase

bool	terminated

QString	uniqueGroup

Detailed Description

Base class for all 2D Centroid tools.

Author: CVH © 2021

Constructor & Destructor Documentation

◆ InfoCentroids()

void InfoCentroids::InfoCentroids ( void guiAction )

inline

Member Function Documentation

◆ addCentroidMarker()

void InfoCentroids::addCentroidMarker	(	void	doc,
		void	op,
		void	dataC,
		void	radius,
		void	preview )

inline

Adding 2D Centroid marker to a given operation.

Supports: 2D point mass, 2D area Centroid and 2D wire Centroid Type depends on booleans this.massMode & this.wireMode

Author: CVH © 2021

Parameters

doc	Reference to the current document.
op	Given operation to add the marker entity.
dataC	Centroid data [x, y, position, weight] (A value to weigh with, not to be mistaken by its mass for area/wire types)
radius	Marker size.
(preview)	Optional: Preview mode, true/=false.

Returns: Nothing, marker is added to the operation.

◆ addTextLabel()

void InfoCentroids::addTextLabel	(	void	doc,
		void	op,
		void	pos,
		void	offset,
		void	text )

inline

Adding text labels to a given operation.

Author: CVH © 2021

Parameters

doc	Reference to the current document.
op	Given operation to add the text label entity.
pos	Marker position.
offset	Offset vector to the marker position.
text	Label text.

Returns: Nothing, text label is added to the operation.

◆ advanceSelection()

void InfoCentroids::advanceSelection	(	void	di,
		void	transaction )

inline

Advance the selection to the added marker (polyline).

Author: CVH © 2021

Parameters

di	A reference to the document interface.
transaction	The transaction that added entities.

Returns: Nothing. Selection is adapted

◆ beginEvent()

void InfoCentroids::beginEvent ( )

inlinevirtual

Called when the user starts this action by clicking a button, choosing a menu, entering a command, etc.

Shows the GUI elements that refer to this action as checked. Displays GUI options if this.uiFile is set to a valid UI file. Displays tool help in Help Viewer if available.

Reimplemented from EAction.

Reimplemented in InfoCentroidsListener, InfoSumCentroidsWeighted, and InfoWireCentroid.

◆ formatCmdValue()

void InfoCentroids::formatCmdValue	(	void	value,
		void	digits )

inline

Format a value textual for reporting on the command History.

Without trailing zeros, defaults to 8 when digits is invalid. With a leading space, without trailing zeros.

Author: CVH © 2021

Parameters

value	Value to format textual.
(digits)	Optional: Number of digits. (=Appl.Prec.)

Returns: Textual representation with application decimal point in given or in application precision.

◆ formatCoordinate()

void InfoCentroids::formatCoordinate	(	void	valueX,
		void	valueY )

inline

Format a pair of values textual as coordinate.

In full precision with application decimal point. With a leading space.

Author: CVH © 2021

Parameters

valueX	X value of coordinate.
valueY	X value of coordinate.

Returns: Textual representation coordinate pair.

◆ formatLabelValue()

void InfoCentroids::formatLabelValue	(	void	value,
		void	decPnt,
		void	digits,
		void	trailingZ )

inline

Format a value textual for a 2D Centroid label.

Without a leading space.

Author: CVH © 2021

Parameters

value	Value to format textual.
decPnt	Decimal separator.
digits	Number of digits.
trailingZ	Trailing zeros, true/false.

Returns: Textual representation governed by given preferences

◆ formatPropValue()

void InfoCentroids::formatPropValue ( void value )

inline

Format a value textual for storing properties.

Without a leading space.

Parameters

value Value to format textual.

Returns: Textual representation in full precision with application decimal point.

◆ getMarkerSize()

void InfoCentroids::getMarkerSize ( )

inline

Defines a 2D Centroid marker size based on overall box and drawing font size.

Depends on this.boxSize & this.fontSize

Returns: Radius for marker entity.

◆ getRunningSumKBK()

void InfoCentroids::getRunningSumKBK ( void list )

inline

Sums values in an array by 'A generalized Kahan–Babuška-Summation-Algorithm' proposed by Klein.

Running sums may have a poor accuracy due to loss of significance. Somewhat slower than the naive approach and it requires arrays of many (tiny) values. Advantages here are: Single loop trough and second-order compensation. Usable for long (unsorted) lists of arbitrary values.

Parameters

list	A list of values.

Returns: The sum of the values or NaN when not an array of all numbers.

◆ getTitle()

void InfoCentroids::getTitle ( )

inline

◆ mergeBoxWith()

void InfoCentroids::mergeBoxWith ( void item )

inline

Accumulate a given item to an overall box size.

Parameters

item	An RBox or an RVector to include.

Returns: Nothing. Overall box in this.boxSize is adapted.

The documentation for this class was generated from the following file:

scripts/Misc/MiscInformation/InfoCentroids/InfoCentroids.js

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ InfoCentroids()

Member Function Documentation

◆ addCentroidMarker()

◆ addTextLabel()

◆ advanceSelection()

◆ beginEvent()

◆ formatCmdValue()

◆ formatCoordinate()

◆ formatLabelValue()

◆ formatPropValue()

◆ getMarkerSize()

◆ getRunningSumKBK()

◆ getTitle()

◆ mergeBoxWith()
