RPolyline Class Reference
Math Module

Low-level mathematical representation of an open polyline or closed polyline (= polygon). More...

#include <RPolyline.h>

Inheritance diagram for RPolyline:

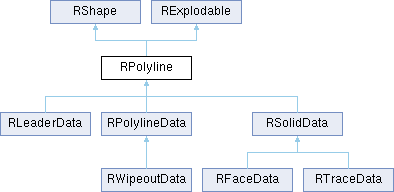

RShape RExplodable RLeaderData RPolylineData RSolidData RWipeoutData RFaceData RTraceData

Public Member Functions

bool appendShape (const RShape &shape, bool prepend=false)

bool appendShapeAuto (const RShape &shape)
 Appends the given shape to this polyline.

bool appendShapeTrim (const RShape &shape)

void appendVertex (const RVector &vertex, double bulge=0.0, double w1=0.0, double w2=0.0)

void appendVertex (double x, double y, double bulge=0.0, double w1=0.0, double w2=0.0)

bool autoClose (double tolerance=RS::PointTolerance)

void clear ()

virtual QSharedPointer< RShape > clone () const

QSharedPointer< RPolyline > cloneToPolyline () const

bool closeTrim ()

virtual bool contains (const RVector &point, bool borderIsInside=false, double tolerance=RS::PointTolerance) const
 Checks if the given point is inside this closed polygon.

bool containsShape (const RShape &shape) const
 Checks if the given shape is completely inside this closed polygon.

RPolyline convertArcToLineSegments (int segments) const

RPolyline convertArcToLineSegmentsLength (double segmentLength) const

bool convertToClosed ()

bool convertToOpen ()

int countSegments () const

int countVertices () const

virtual double getAngleAt (double distance, RS::From from=RS::FromStart) const

double getArea () const

double getBaseAngle () const

virtual QList< bool > getBoolProperties () const

virtual RBox getBoundingBox () const

double getBulgeAt (int i) const

QList< double > getBulges () const

virtual QList< RVector > getCenterPoints () const

RVector getCentroid () const

int getClosestSegment (const RVector &point) const

int getClosestVertex (const RVector &point) const

QList< RVector > getConcaveVertices () const

QList< RVector > getConvexVertices (bool convex=true) const

virtual double getDirection1 () const

virtual double getDirection2 () const

virtual double getDistanceFromStart (const RVector &p) const

virtual QList< double > getDistancesFromStart (const RVector &p) const

virtual double getDistanceTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual QList< double > getDoubleProperties () const

virtual RVector getEndPoint () const

virtual QList< RVector > getEndPoints () const

double getEndWidthAt (int i) const

QList< double > getEndWidths () const

virtual QList< QSharedPointer< RShape > > getExploded (int segments=RDEFAULT_MIN1) const

QSharedPointer< RShape > getFirstSegment () const

double getHeight () const

QSharedPointer< RShape > getLastSegment () const

RVector getLastVertex () const

QList< RPolyline > getLeftOutline () const

QList< QPair< RPolyline, RPolyline > > getLeftRightOutline () const

virtual double getLength () const

double getLengthTo (const RVector &p, bool limited=true) const

virtual RVector getMiddlePoint () const

virtual QList< RVector > getMiddlePoints () const

RS::Orientation getOrientation (bool implicitelyClosed=false) const

QList< RPolyline > getOutline () const

virtual RVector getPointAtPercent (double p) const

virtual QList< RVector > getPointCloud (double segmentLength) const

RVector getPointInside () const

virtual QList< RVector > getPointsWithDistanceToEnd (double distance, int from=RS::FromAny) const

RPolyline getPolygon (double segmentLength) const

RPolyline getPolygonHull (double angle, double tolerance, bool inner=false) const

virtual RPolyline getReversed () const

QList< RPolyline > getRightOutline () const

QSharedPointer< RShape > getSegmentAt (int i) const

int getSegmentAtDist (double dist)

double getSegmentsLength (int fromIndex, int toIndex) const

QList< RVector > getSelfIntersectionPoints (double tolerance=RS::PointTolerance) const

virtual RShape::Type getShapeType () const

virtual RS::Side getSideOfPoint (const RVector &point) const

virtual RVector getStartPoint () const

double getStartWidthAt (int i) const

QList< double > getStartWidths () const

virtual QSharedPointer< RShape > getTransformed (const QTransform &transform) const

virtual RS::Ending getTrimEnd (const RVector &trimPoint, const RVector &clickPoint)

virtual QList< RVector > getVectorProperties () const

virtual RVector getVectorTo (const RVector &point, bool limited=true, double strictRange=RMAXDOUBLE) const

double getVertexAngle (int i, RS::Orientation orientation=RS::UnknownOrientation) const

QList< double > getVertexAngles () const

RVector getVertexAt (int i) const

int getVertexIndex (const RVector &v, double tolerance=RS::PointTolerance) const

QList< RVector > getVertices () const

double getWidth () const

bool hasArcSegments () const

bool hasWidths () const

void insertVertex (int index, const RVector &vertex, double bulgeBefore=0.0, double bulgeAfter=0.0)

void insertVertexAt (const RVector &point)
 Inserts a vertex at the point on the polyline closest to the given position.

RVector insertVertexAtDistance (double dist)

bool insertVerticesAtSelfIntersections ()

bool isArcSegmentAt (int i) const

bool isClosed () const

bool isConcave () const

virtual bool isDirected () const

bool isEmpty () const

bool isFlat () const

bool isGeometricallyClosed (double tolerance=RS::PointTolerance) const

virtual bool isInterpolated () const
 Reimplement and return true if this shape relies on interpolation for geometrical operations such as finding intersection points.

virtual bool mirror (const RLine &axis)

RPolyline modifyPolylineCorner (const RShape &trimmedShape1, RS::Ending ending1, int segmentIndex1, const RShape &trimmedShape2, RS::Ending ending2, int segmentIndex2, const RShape *cornerShape=NULL) const
 Modifies (bevels, rounds, trims) the corner of this polyline between segmentIndex1 and segmentIndex2 at the given segment endings.

QList< RPolyline > morph (const RPolyline &target, int steps, RS::Easing easing=RS::Linear, bool zLinear=true, double customFactor=RNANDOUBLE) const

virtual bool move (const RVector &offset)

void moveEndPoint (const RVector &pos)

void moveSegmentAt (int i, const RVector &offset)

void moveStartPoint (const RVector &pos)

void moveVertexAt (int i, const RVector &offset)

void normalize (double tolerance=RS::PointTolerance)
 Removes duplicate vertices.

bool prependShape (const RShape &shape)

void prependVertex (const RVector &vertex, double bulge=0.0, double w1=0.0, double w2=0.0)

bool relocateStartPoint (const RVector &p)
 Relocates the start point of this closed polyline to the given point.

bool relocateStartPoint (double dist)

void removeFirstVertex ()

void removeLastVertex ()

void removeVertex (int index)

void removeVerticesAfter (int index)

void removeVerticesBefore (int index)

virtual bool reverse ()

virtual bool rotate (double rotation, const RVector &center=RDEFAULT_RVECTOR)

RPolyline roundAllCorners (double radius) const

 RPolyline ()
 Creates a polyline object without points.

 RPolyline (const QList< QSharedPointer< RShape > > &segments)
 Creates a polyline from segments (lines or arcs).

 RPolyline (const QList< RVector > &vertices, bool closed)
 Creates a polyline object with the given points.

virtual bool scale (const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

virtual bool scale (double scaleFactor, const RVector &center=RDEFAULT_RVECTOR)

void setBulgeAt (int i, double b)

void setBulges (const QList< double > &b)

void setClosed (bool on)
 Marks the poyline as logically (explicitly) closed.

void setEndWidthAt (int i, double w)

void setEndWidths (const QList< double > &ew)

void setGlobalWidth (double w)

bool setHeight (double v)

void setMinimumWidth (double w)

bool setOrientation (RS::Orientation orientation)

void setStartWidthAt (int i, double w)

void setStartWidths (const QList< double > &sw)

void setVertexAt (int i, const RVector &v)

void setVertices (const QList< RVector > &vertices)

bool setWidth (double v)

virtual void setZ (double z)

bool simplify (double tolerance=RS::PointTolerance)
 Simplify by attempting to skip nodes within given tolerance.

QList< RPolyline > splitAtDiscontinuities (double tolerance) const

QList< RPolyline > splitAtSegmentTypeChange () const
 Splits the polyline into polylines with exclusively line or arc segments.

virtual bool stretch (const RPolyline &area, const RVector &offset)

void stripWidths ()

bool toLogicallyClosed (double tolerance=RS::PointTolerance)
 Converts this geometrically closed polyline (start == end) to a locically closed polyline.

bool toLogicallyOpen ()
 Converts this logically closed polyline to a locically open, geometrically closed polyline.

RPainterPath toPainterPath (bool addOriginalShapes=false) const

virtual bool trimEndPoint (const RVector &trimPoint, const RVector &clickPoint=RVector::invalid, bool extend=false)

virtual bool trimEndPoint (double trimDist)

virtual bool trimStartPoint (const RVector &trimPoint, const RVector &clickPoint=RVector::invalid, bool extend=false)

virtual bool trimStartPoint (double trimDist)

QList< RVector > verifyTangency (double toleranceMin=RS::AngleTolerance, double toleranceMax=M_PI_4)
 Verifies the tangency of this polyline.

virtual ~RPolyline ()

- Public Member Functions inherited from RShape
void dump () const

virtual bool equals (const RShape &other, double tolerance=RS::PointTolerance) const

virtual QList< RVector > filterOnShape (const QList< RVector > &pointList, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual bool flipHorizontal ()

virtual bool flipVertical ()

virtual double getAngleAtPercent (double p) const

virtual double getAngleAtPoint (const RVector &pos) const

virtual QList< RVector > getArcReferencePoints () const

virtual RVector getClosestPointOnShape (const RVector &p, bool limited=true, double strictRange=RMAXDOUBLE) const

QList< RVector > getIntersectionPoints (const RShape &other, bool limited=true, bool same=false, bool force=false) const

virtual QList< int > getIntProperties () const

virtual double getMaxDistanceTo (const QList< RVector > &points, bool limited=true, double strictRange=RMAXDOUBLE) const

virtual QList< QSharedPointer< RShape > > getOffsetShapes (double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

virtual RVector getPointOnShape () const

virtual RVector getPointWithDistanceToEnd (double distance) const

virtual RVector getPointWithDistanceToStart (double distance) const

virtual RVector getVectorFromEndpointTo (const RVector &point) const

virtual bool intersectsWith (const RShape &other, bool limited=true) const

virtual bool isOnShape (const RVector &point, bool limited=true, double tolerance=RDEFAULT_TOLERANCE_1E_MIN4) const

virtual bool isValid () const

 RShape ()

virtual QList< QSharedPointer< RShape > > splitAt (const QList< RVector > &points) const

virtual bool stretch (const RBox &area, const RVector &offset)

virtual void to2D ()
 Flattens this shape to the X/Y plane.

virtual ~RShape ()

- Public Member Functions inherited from RExplodable
virtual ~RExplodable ()


Static Public Member Functions

static RPolylineProxy * getPolylineProxy ()

static bool hasProxy ()

static bool isStraight (double bulge)

static void setPolylineProxy (RPolylineProxy *p)

- Static Public Member Functions inherited from RShape
static const RExplodable * castToExplodable (const RShape *shape)

static QSharedPointer< RShape > ellipseToArcCircleEllipse (const REllipse &ellipse)

static int getErrorCode ()

static QList< RVector > getIntersectionPoints (const RShape &shape1, const RShape &shape2, bool limited=true, bool same=false, bool force=false)

static QList< RVector > getIntersectionPointsAA (const RArc &arc1, const RArc &arc2, bool limited=true)

static QList< RVector > getIntersectionPointsAC (const RArc &arc1, const RCircle &circle2, bool limited=true)

static QList< RVector > getIntersectionPointsAE (const RArc &arc1, const REllipse &ellipse2, bool limited=true)

static QList< RVector > getIntersectionPointsAS (const RArc &arc1, const RSpline &spline2, bool limited=true)

static QList< RVector > getIntersectionPointsAT (const RArc &arc1, const RTriangle &triangle2, bool limited=true)

static QList< RVector > getIntersectionPointsAX (const RArc &arc1, const RExplodable &explodable2, bool limited=true)

static QList< RVector > getIntersectionPointsCC (const RCircle &circle1, const RCircle &circle2)

static QList< RVector > getIntersectionPointsCE (const RCircle &circle1, const REllipse &ellipse2)

static QList< RVector > getIntersectionPointsCS (const RCircle &circle1, const RSpline &spline2, bool limited=true)

static QList< RVector > getIntersectionPointsCX (const RCircle &circle1, const RExplodable &explodable2, bool limited=true)

static QList< RVector > getIntersectionPointsEE (const REllipse &ellipse1, const REllipse &ellipse2)
 Based on "Hughes and Chraibi (2011-2012), Calculating Ellipse Overlap Areas".

static QList< RVector > getIntersectionPointsEE (const REllipse &ellipse1, const REllipse &ellipse2, bool limited)

static QList< RVector > getIntersectionPointsES (const REllipse &ellipse1, const RSpline &spline2, bool limited=true)

static QList< RVector > getIntersectionPointsEX (const REllipse &ellipse1, const RExplodable &explodable2, bool limited=true)

static QList< RVector > getIntersectionPointsLA (const RLine &line1, const RArc &arc2, bool limited1, bool limited2)

static QList< RVector > getIntersectionPointsLA (const RLine &line1, const RArc &arc2, bool limited=true)

static QList< RVector > getIntersectionPointsLC (const RLine &line1, const RCircle &circle2, bool limited=true)

static QList< RVector > getIntersectionPointsLE (const RLine &line1, const REllipse &ellipse2, bool limited1, bool limited2)

static QList< RVector > getIntersectionPointsLE (const RLine &line1, const REllipse &ellipse2, bool limited=true)

static QList< RVector > getIntersectionPointsLL (const RLine &line1, const RLine &line2, bool limited1, bool limited2)

static QList< RVector > getIntersectionPointsLL (const RLine &line1, const RLine &line2, bool limited=true)

static QList< RVector > getIntersectionPointsLS (const RLine &line1, const RSpline &spline2, bool limited=true)

static QList< RVector > getIntersectionPointsLT (const RLine &line1, const RTriangle &triangle2, bool limited1, bool limited2)

static QList< RVector > getIntersectionPointsLT (const RLine &line1, const RTriangle &triangle2, bool limited=true)

static QList< RVector > getIntersectionPointsLX (const RLine &line1, const RExplodable &explodable2, bool limited=true)

static QList< RVector > getIntersectionPointsSS (const RSpline &spline1, const RSpline &spline2, bool limited=true, bool same=false, double tolerance=RS::PointTolerance)

static QList< RVector > getIntersectionPointsSX (const RSpline &spline1, const RExplodable &explodable2, bool limited)

static QList< RVector > getIntersectionPointsXX (const RExplodable &explodable1, const RExplodable &explodable2, bool limited=true, bool same=false)

static QList< QSharedPointer< RShape > > getOffsetArcs (const RShape &shape, double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

static QList< QSharedPointer< RShape > > getOffsetLines (const RShape &shape, double distance, int number, RS::Side side, const RVector &position=RVector::invalid)

static QList< QSharedPointer< RShape > > getOrderedShapes (const QList< QSharedPointer< RShape > > &shapes)

static QList< RPolyline > getPolylines (const QList< QSharedPointer< RShape > > &shapes)

static QList< QSharedPointer< RShape > > getReversedShapeList (const QList< QSharedPointer< RShape > > &shapes)

static RShapeProxy * getShapeProxy ()

static bool hasProxy ()

static bool isArcShape (const RShape &s)

static bool isCircleShape (const RShape &s)

static bool isEllipseShape (const RShape &s)

static bool isFullEllipseShape (const RShape &s)

static bool isLineShape (const RShape &s)

static bool isPointShape (const RShape &s)

static bool isPolylineShape (const RShape &s)

static bool isRayShape (const RShape &s)

static bool isSplineShape (const RShape &s)

static bool isTriangleShape (const RShape &s)

static bool isXLineShape (const RShape &s)

static bool order (QList< QList< QSharedPointer< RShape > > > &boundary)
 Orders the given list of loops into a list of closed loops in which all shapes are connected end to start point.

static QSharedPointer< RShape > rayToLine (QSharedPointer< RShape > shape)

static QList< QSharedPointer< RShape > > roundCorners (const QList< QSharedPointer< RShape > > &shapes, double radius)
 Round every corner of the list of given (connected) shapes with the given radius.

static QList< QSharedPointer< RShape > > roundShapes (const QSharedPointer< RShape > shape1, const RVector &clickPos1, const QSharedPointer< RShape > shape2, const RVector &clickPos2, bool trim, bool samePolyline, double radius, const RVector &pos)
 Rounds the given shape1 against shape2.

static QSharedPointer< RShape > scaleArc (const RShape &shape, const RVector &scaleFactors, const RVector &center=RDEFAULT_RVECTOR)

static void setShapeProxy (RShapeProxy *p)

static QSharedPointer< RShape > transformArc (const RShape &shape, RShapeTransformation &transformation)

static QList< QSharedPointer< RShape > > trim (const RShape &trimShape, const RVector &trimClickPos, const RShape &limitingShape, const RVector &limitingClickPos, bool trimBoth, bool samePolyline)
 Trims a shape to another or two shapes to each other.

static QSharedPointer< RShape > xLineToRay (QSharedPointer< RShape > shape)


Protected Member Functions

bool isLineSegment (int i) const

void print (QDebug dbg) const


Protected Attributes

QList< double > bulges

bool closed

Getter function for this property: isClosed

Setter function for this property: setClosed


QList< double > endWidths

QList< double > startWidths

QList< RVector > vertices

Getter function for this property: getVertices

Setter function for this property: setVertices



Static Private Attributes

static RPolylineProxy * polylineProxy = NULL
 Copyright (c) 2011-2018 by Andrew Mustun.


Additional Inherited Members

- Public Types inherited from RShape
enum  Type {
  Unknown = -1 , Point = 0 , Line = 1 , Arc = 2 ,
  Circle = 3 , Ellipse = 4 , Polyline = 5 , Spline = 6 ,
  Triangle = 7 , XLine = 8 , Ray = 9
}

- Static Protected Attributes inherited from RShape
static int errorCode = 0


Detailed Description

Low-level mathematical representation of an open polyline or closed polyline (= polygon).

Scriptable:\nThis class is available in script environments.\n
Shared Pointer Support:\nObjects can be used in QSharedPointer.\n
Copyable:\nObjects are cleaned up automatically by the garbage collector of the script engine.\n
Stream Operator:\nObject has a stream operator to present itself as string, for example when using toString() in a script.\n

Constructor & Destructor Documentation

◆ RPolyline() [1/3]

RPolyline::RPolyline ( )

Creates a polyline object without points.

◆ RPolyline() [2/3]

RPolyline::RPolyline ( const QList< RVector > & vertices,
bool closed )

Creates a polyline object with the given points.

◆ RPolyline() [3/3]

RPolyline::RPolyline ( const QList< QSharedPointer< RShape > > & segments)

Creates a polyline from segments (lines or arcs).

◆ ~RPolyline()

RPolyline::~RPolyline ( )
virtual

Member Function Documentation

◆ appendShape()

bool RPolyline::appendShape ( const RShape & shape,
bool prepend = false )

◆ appendShapeAuto()

bool RPolyline::appendShapeAuto ( const RShape & shape)

Appends the given shape to this polyline.

The shape is reversed if necessary.

◆ appendShapeTrim()

bool RPolyline::appendShapeTrim ( const RShape & shape)

◆ appendVertex() [1/2]

void RPolyline::appendVertex ( const RVector & vertex,
double bulge = 0.0,
double w1 = 0.0,
double w2 = 0.0 )

◆ appendVertex() [2/2]

void RPolyline::appendVertex ( double x,
double y,
double bulge = 0.0,
double w1 = 0.0,
double w2 = 0.0 )

◆ autoClose()

bool RPolyline::autoClose ( double tolerance = RS::PointTolerance)
inline

◆ clear()

void RPolyline::clear ( )

◆ clone()

virtual QSharedPointer< RShape > RPolyline::clone ( ) const
inlinevirtual

Implements RShape.

◆ cloneToPolyline()

QSharedPointer< RPolyline > RPolyline::cloneToPolyline ( ) const
inline

◆ closeTrim()

bool RPolyline::closeTrim ( )

◆ contains()

bool RPolyline::contains ( const RVector & point,
bool borderIsInside = false,
double tolerance = RS::PointTolerance ) const
virtual

Checks if the given point is inside this closed polygon.

If this polyline is not closed, false is returned.

See also
setClosed
Parameters
borderIsInsideTrue if a position on the polyline counts as inside.
toleranceTolerance used to check if point is on polyline.

◆ containsShape()

bool RPolyline::containsShape ( const RShape & shape) const

Checks if the given shape is completely inside this closed polygon.

If this polyline is not closed, false is returned.

See also
setClosed

If the shape touches the polyline, false is returned.

Parameters
shapeThe shape to check.

◆ convertArcToLineSegments()

RPolyline RPolyline::convertArcToLineSegments ( int segments) const

◆ convertArcToLineSegmentsLength()

RPolyline RPolyline::convertArcToLineSegmentsLength ( double segmentLength) const

◆ convertToClosed()

bool RPolyline::convertToClosed ( )

◆ convertToOpen()

bool RPolyline::convertToOpen ( )

◆ countSegments()

int RPolyline::countSegments ( ) const
Returns
Number of segments. The number of segments equals the number of vertices for a closed polyline and one less for an open polyline.

◆ countVertices()

int RPolyline::countVertices ( ) const

◆ getAngleAt()

double RPolyline::getAngleAt ( double distance,
RS::From from = RS::FromStart ) const
virtual
Returns
Angle on the entity at the given distance from the start point.

Reimplemented from RShape.

◆ getArea()

double RPolyline::getArea ( ) const
Returns
Area of (implicitly closed) polyline.

◆ getBaseAngle()

double RPolyline::getBaseAngle ( ) const

◆ getBoolProperties()

QList< bool > RPolyline::getBoolProperties ( ) const
virtual

Reimplemented from RShape.

◆ getBoundingBox()

RBox RPolyline::getBoundingBox ( ) const
virtual
Returns
The bounding box of this shape.

Implements RShape.

◆ getBulgeAt()

double RPolyline::getBulgeAt ( int i) const

◆ getBulges()

QList< double > RPolyline::getBulges ( ) const

◆ getCenterPoints()

QList< RVector > RPolyline::getCenterPoints ( ) const
virtual
Returns
The center point(s) of this shape.

Implements RShape.

◆ getCentroid()

RVector RPolyline::getCentroid ( ) const
Returns
Centroid of this polygon or invalid if polyline contains arc segments. The polyline is implicitely considered to be closed.

◆ getClosestSegment()

int RPolyline::getClosestSegment ( const RVector & point) const

◆ getClosestVertex()

int RPolyline::getClosestVertex ( const RVector & point) const

◆ getConcaveVertices()

QList< RVector > RPolyline::getConcaveVertices ( ) const

◆ getConvexVertices()

QList< RVector > RPolyline::getConvexVertices ( bool convex = true) const

◆ getDirection1()

double RPolyline::getDirection1 ( ) const
virtual

Reimplemented from RShape.

Reimplemented in RPolylineData, and RSolidData.

◆ getDirection2()

double RPolyline::getDirection2 ( ) const
virtual

Reimplemented from RShape.

Reimplemented in RPolylineData, and RSolidData.

◆ getDistanceFromStart()

virtual double RPolyline::getDistanceFromStart ( const RVector & p) const
inlinevirtual
Returns
Distance of given point to start point of shape along shape.
Parameters
pPoint (assumed to be on shape).

Reimplemented from RShape.

◆ getDistancesFromStart()

QList< double > RPolyline::getDistancesFromStart ( const RVector & p) const
virtual
Returns
All possible distances of given point to start point of shape along shape.
Parameters
pPoint (assumed to be on shape).

Reimplemented from RShape.

◆ getDistanceTo()

double RPolyline::getDistanceTo ( const RVector & point,
bool limited = true,
double strictRange = RMAXDOUBLE ) const
virtual
Returns
Shortest distance from this shape to the given point. Based on getVectorTo.

Reimplemented from RShape.

◆ getDoubleProperties()

QList< double > RPolyline::getDoubleProperties ( ) const
virtual

Reimplemented from RShape.

◆ getEndPoint()

RVector RPolyline::getEndPoint ( ) const
virtual

Reimplemented from RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ getEndPoints()

QList< RVector > RPolyline::getEndPoints ( ) const
virtual
Returns
The end point(s) of this shape.

Implements RShape.

◆ getEndWidthAt()

double RPolyline::getEndWidthAt ( int i) const

◆ getEndWidths()

QList< double > RPolyline::getEndWidths ( ) const

◆ getExploded()

QList< QSharedPointer< RShape > > RPolyline::getExploded ( int segments = RDEFAULT_MIN1) const
virtual
Returns
List of RLines and RArcs describing this polyline.

Implements RExplodable.

Reimplemented in RLeaderData, and RPolylineData.

◆ getFirstSegment()

QSharedPointer< RShape > RPolyline::getFirstSegment ( ) const

◆ getHeight()

double RPolyline::getHeight ( ) const

◆ getLastSegment()

QSharedPointer< RShape > RPolyline::getLastSegment ( ) const

◆ getLastVertex()

RVector RPolyline::getLastVertex ( ) const

◆ getLeftOutline()

QList< RPolyline > RPolyline::getLeftOutline ( ) const
inline

◆ getLeftRightOutline()

QList< QPair< RPolyline, RPolyline > > RPolyline::getLeftRightOutline ( ) const

◆ getLength()

double RPolyline::getLength ( ) const
virtual
Returns
The total length of this shape if applicable or NaN if not.

Implements RShape.

◆ getLengthTo()

double RPolyline::getLengthTo ( const RVector & p,
bool limited = true ) const
Returns
Length along polyline from start point to given point p or the closest point to p on the polyline.

◆ getMiddlePoint()

RVector RPolyline::getMiddlePoint ( ) const
virtual

Reimplemented from RShape.

◆ getMiddlePoints()

QList< RVector > RPolyline::getMiddlePoints ( ) const
virtual
Returns
The middle point(s) of this shape.

Implements RShape.

◆ getOrientation()

RS::Orientation RPolyline::getOrientation ( bool implicitelyClosed = false) const

◆ getOutline()

QList< RPolyline > RPolyline::getOutline ( ) const

◆ getPointAtPercent()

RVector RPolyline::getPointAtPercent ( double p) const
virtual
Returns
Point at given percentile.

Reimplemented from RShape.

◆ getPointCloud()

QList< RVector > RPolyline::getPointCloud ( double segmentLength) const
virtual

Implements RShape.

◆ getPointInside()

RVector RPolyline::getPointInside ( ) const
Returns
Any point that is inside this polyline.

◆ getPointsWithDistanceToEnd()

QList< RVector > RPolyline::getPointsWithDistanceToEnd ( double distance,
int from = RS::FromAny ) const
virtual
Returns
All points on this shape with the given distance to an endpoint.

Implements RShape.

◆ getPolygon()

RPolyline RPolyline::getPolygon ( double segmentLength) const

◆ getPolygonHull()

RPolyline RPolyline::getPolygonHull ( double angle,
double tolerance,
bool inner = false ) const

◆ getPolylineProxy()

static RPolylineProxy * RPolyline::getPolylineProxy ( )
inlinestatic
Non-Scriptable:\nThis function is not available in script environments.\n

◆ getReversed()

RPolyline RPolyline::getReversed ( ) const
virtual

◆ getRightOutline()

QList< RPolyline > RPolyline::getRightOutline ( ) const
inline

◆ getSegmentAt()

QSharedPointer< RShape > RPolyline::getSegmentAt ( int i) const
Returns
Shape of segment at given position.

◆ getSegmentAtDist()

int RPolyline::getSegmentAtDist ( double dist)

◆ getSegmentsLength()

double RPolyline::getSegmentsLength ( int fromIndex,
int toIndex ) const
Returns
Length of all segments from first index (fromIndex) to last index (toIndex), excluding toIndex.

◆ getSelfIntersectionPoints()

QList< RVector > RPolyline::getSelfIntersectionPoints ( double tolerance = RS::PointTolerance) const
virtual

Reimplemented from RShape.

◆ getShapeType()

virtual RShape::Type RPolyline::getShapeType ( ) const
inlinevirtual

Reimplemented from RShape.

◆ getSideOfPoint()

RS::Side RPolyline::getSideOfPoint ( const RVector & point) const
virtual

Reimplemented from RShape.

◆ getStartPoint()

RVector RPolyline::getStartPoint ( ) const
virtual

Reimplemented from RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ getStartWidthAt()

double RPolyline::getStartWidthAt ( int i) const

◆ getStartWidths()

QList< double > RPolyline::getStartWidths ( ) const

◆ getTransformed()

QSharedPointer< RShape > RPolyline::getTransformed ( const QTransform & transform) const
virtual

Implements RShape.

◆ getTrimEnd()

RS::Ending RPolyline::getTrimEnd ( const RVector & trimPoint,
const RVector & clickPoint )
virtual
Parameters
trimPointTrim start point or end point to this coordinate.
clickPointPoint that was clicked by user.

Reimplemented from RShape.

Reimplemented in RSolidData.

◆ getVectorProperties()

QList< RVector > RPolyline::getVectorProperties ( ) const
virtual

Reimplemented from RShape.

◆ getVectorTo()

RVector RPolyline::getVectorTo ( const RVector & point,
bool limited = true,
double strictRange = RMAXDOUBLE ) const
virtual
Returns
Shortest vector from this shape to the given point.
Parameters
pointthe given point
limitedIf false, the shape is treated as an unlimited shape that extends in a logical way. For example an unlimited line for a line, full circle for an arc or a plane for a triangle.

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ getVertexAngle()

double RPolyline::getVertexAngle ( int i,
RS::Orientation orientation = RS::UnknownOrientation ) const

◆ getVertexAngles()

QList< double > RPolyline::getVertexAngles ( ) const

◆ getVertexAt()

RVector RPolyline::getVertexAt ( int i) const

◆ getVertexIndex()

int RPolyline::getVertexIndex ( const RVector & v,
double tolerance = RS::PointTolerance ) const

◆ getVertices()

QList< RVector > RPolyline::getVertices ( ) const

◆ getWidth()

double RPolyline::getWidth ( ) const

◆ hasArcSegments()

bool RPolyline::hasArcSegments ( ) const

◆ hasProxy()

static bool RPolyline::hasProxy ( )
inlinestatic

◆ hasWidths()

bool RPolyline::hasWidths ( ) const

◆ insertVertex()

void RPolyline::insertVertex ( int index,
const RVector & vertex,
double bulgeBefore = 0.0,
double bulgeAfter = 0.0 )

◆ insertVertexAt()

void RPolyline::insertVertexAt ( const RVector & point)

Inserts a vertex at the point on the polyline closest to the given position.

◆ insertVertexAtDistance()

RVector RPolyline::insertVertexAtDistance ( double dist)

◆ insertVerticesAtSelfIntersections()

bool RPolyline::insertVerticesAtSelfIntersections ( )

◆ isArcSegmentAt()

bool RPolyline::isArcSegmentAt ( int i) const

◆ isClosed()

bool RPolyline::isClosed ( ) const
Returns
True if this polyline is logically marked as closed.

◆ isConcave()

bool RPolyline::isConcave ( ) const

◆ isDirected()

virtual bool RPolyline::isDirected ( ) const
inlinevirtual

Reimplemented from RShape.

◆ isEmpty()

bool RPolyline::isEmpty ( ) const
inline

◆ isFlat()

bool RPolyline::isFlat ( ) const

◆ isGeometricallyClosed()

bool RPolyline::isGeometricallyClosed ( double tolerance = RS::PointTolerance) const
Returns
True is this polyline is geometrically closed. If this polyline is logically closed it is implicitly also geometrically closed.

◆ isInterpolated()

virtual bool RPolyline::isInterpolated ( ) const
inlinevirtual

Reimplement and return true if this shape relies on interpolation for geometrical operations such as finding intersection points.

E.g. splines.

Reimplemented from RShape.

◆ isLineSegment()

bool RPolyline::isLineSegment ( int i) const
protected
Returns
True if the segment at the given position is a line.

◆ isStraight()

bool RPolyline::isStraight ( double bulge)
static
Returns
True if the given bulge indicates a straight line segment (i.e. is 0.0).

◆ mirror()

bool RPolyline::mirror ( const RLine & axis)
virtual

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ modifyPolylineCorner()

RPolyline RPolyline::modifyPolylineCorner ( const RShape & trimmedShape1,
RS::Ending ending1,
int segmentIndex1,
const RShape & trimmedShape2,
RS::Ending ending2,
int segmentIndex2,
const RShape * cornerShape = NULL ) const

Modifies (bevels, rounds, trims) the corner of this polyline between segmentIndex1 and segmentIndex2 at the given segment endings.

The given cornerShape (bevel, rounding) is inserted between.

◆ morph()

QList< RPolyline > RPolyline::morph ( const RPolyline & target,
int steps,
RS::Easing easing = RS::Linear,
bool zLinear = true,
double customFactor = RNANDOUBLE ) const

◆ move()

bool RPolyline::move ( const RVector & offset)
virtual

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ moveEndPoint()

void RPolyline::moveEndPoint ( const RVector & pos)

◆ moveSegmentAt()

void RPolyline::moveSegmentAt ( int i,
const RVector & offset )

◆ moveStartPoint()

void RPolyline::moveStartPoint ( const RVector & pos)

◆ moveVertexAt()

void RPolyline::moveVertexAt ( int i,
const RVector & offset )

◆ normalize()

void RPolyline::normalize ( double tolerance = RS::PointTolerance)

Removes duplicate vertices.

◆ prependShape()

bool RPolyline::prependShape ( const RShape & shape)

◆ prependVertex()

void RPolyline::prependVertex ( const RVector & vertex,
double bulge = 0.0,
double w1 = 0.0,
double w2 = 0.0 )

◆ print()

void RPolyline::print ( QDebug dbg) const
protectedvirtual

Reimplemented from RShape.

◆ relocateStartPoint() [1/2]

bool RPolyline::relocateStartPoint ( const RVector & p)

Relocates the start point of this closed polyline to the given point.

The visual appearance of the polyline does not change.

◆ relocateStartPoint() [2/2]

bool RPolyline::relocateStartPoint ( double dist)

◆ removeFirstVertex()

void RPolyline::removeFirstVertex ( )

◆ removeLastVertex()

void RPolyline::removeLastVertex ( )

◆ removeVertex()

void RPolyline::removeVertex ( int index)

◆ removeVerticesAfter()

void RPolyline::removeVerticesAfter ( int index)

◆ removeVerticesBefore()

void RPolyline::removeVerticesBefore ( int index)

◆ reverse()

bool RPolyline::reverse ( )
virtual

Reimplemented from RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ rotate()

bool RPolyline::rotate ( double rotation,
const RVector & center = RDEFAULT_RVECTOR )
virtual

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ roundAllCorners()

RPolyline RPolyline::roundAllCorners ( double radius) const

◆ scale() [1/2]

bool RPolyline::scale ( const RVector & scaleFactors,
const RVector & center = RDEFAULT_RVECTOR )
virtual

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ scale() [2/2]

bool RPolyline::scale ( double scaleFactor,
const RVector & center = RDEFAULT_RVECTOR )
virtual

Reimplemented from RShape.

◆ setBulgeAt()

void RPolyline::setBulgeAt ( int i,
double b )

◆ setBulges()

void RPolyline::setBulges ( const QList< double > & b)

◆ setClosed()

void RPolyline::setClosed ( bool on)

Marks the poyline as logically (explicitly) closed.

The first and last node are usually not identical. Logically closed polylines have an additional segment from start to end point.

◆ setEndWidthAt()

void RPolyline::setEndWidthAt ( int i,
double w )

◆ setEndWidths()

void RPolyline::setEndWidths ( const QList< double > & ew)

◆ setGlobalWidth()

void RPolyline::setGlobalWidth ( double w)

◆ setHeight()

bool RPolyline::setHeight ( double v)

◆ setMinimumWidth()

void RPolyline::setMinimumWidth ( double w)

◆ setOrientation()

bool RPolyline::setOrientation ( RS::Orientation orientation)

◆ setPolylineProxy()

static void RPolyline::setPolylineProxy ( RPolylineProxy * p)
inlinestatic
Non-Scriptable:\nThis function is not available in script environments.\n

◆ setStartWidthAt()

void RPolyline::setStartWidthAt ( int i,
double w )

◆ setStartWidths()

void RPolyline::setStartWidths ( const QList< double > & sw)

◆ setVertexAt()

void RPolyline::setVertexAt ( int i,
const RVector & v )

◆ setVertices()

void RPolyline::setVertices ( const QList< RVector > & vertices)

◆ setWidth()

bool RPolyline::setWidth ( double v)

◆ setZ()

void RPolyline::setZ ( double z)
virtual

Implements RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ simplify()

bool RPolyline::simplify ( double tolerance = RS::PointTolerance)

Simplify by attempting to skip nodes within given tolerance.

Returns
True if nodes have been skipped.

◆ splitAtDiscontinuities()

QList< RPolyline > RPolyline::splitAtDiscontinuities ( double tolerance) const

◆ splitAtSegmentTypeChange()

QList< RPolyline > RPolyline::splitAtSegmentTypeChange ( ) const

Splits the polyline into polylines with exclusively line or arc segments.

◆ stretch()

bool RPolyline::stretch ( const RPolyline & area,
const RVector & offset )
virtual

Reimplemented from RShape.

Reimplemented in RLeaderData, RPolylineData, and RSolidData.

◆ stripWidths()

void RPolyline::stripWidths ( )

◆ toLogicallyClosed()

bool RPolyline::toLogicallyClosed ( double tolerance = RS::PointTolerance)

Converts this geometrically closed polyline (start == end) to a locically closed polyline.

Returns
True on success, false if this polyline is already locically closed or is not geometrically closed.

◆ toLogicallyOpen()

bool RPolyline::toLogicallyOpen ( )

Converts this logically closed polyline to a locically open, geometrically closed polyline.

An additional node is inserted to make sure start == end.

Returns
True on success, false if this polyline is not locically closed.

◆ toPainterPath()

RPainterPath RPolyline::toPainterPath ( bool addOriginalShapes = false) const
Returns
A QPainterPath object that represents this polyline.

◆ trimEndPoint() [1/2]

bool RPolyline::trimEndPoint ( const RVector & trimPoint,
const RVector & clickPoint = RVector::invalid,
bool extend = false )
virtual
Parameters
trimPointTrim start point or end point to this coordinate.
clickPointPoint that was clicked by user.
extendTrue if the shape is to be extended. Used for polylines to determine that the last segment has to be trimmed even if another segment was clicked.

Reimplemented from RShape.

Reimplemented in RSolidData.

◆ trimEndPoint() [2/2]

bool RPolyline::trimEndPoint ( double trimDist)
virtual

Reimplemented from RShape.

◆ trimStartPoint() [1/2]

bool RPolyline::trimStartPoint ( const RVector & trimPoint,
const RVector & clickPoint = RVector::invalid,
bool extend = false )
virtual
Parameters
trimPointTrim start point or end point to this coordinate.
clickPointPoint that was clicked by user.
extendTrue if the shape is to be extended. Used for polylines to determine that the first segment has to be trimmed even if another segment was clicked.

Reimplemented from RShape.

Reimplemented in RSolidData.

◆ trimStartPoint() [2/2]

bool RPolyline::trimStartPoint ( double trimDist)
virtual

Reimplemented from RShape.

◆ verifyTangency()

QList< RVector > RPolyline::verifyTangency ( double toleranceMin = RS::AngleTolerance,
double toleranceMax = M_PI_4 )

Verifies the tangency of this polyline.

Member Data Documentation

◆ bulges

QList<double> RPolyline::bulges
protected

◆ closed

bool RPolyline::closed
protected


Getter function for this property: isClosed

Setter function for this property: setClosed

◆ endWidths

QList<double> RPolyline::endWidths
protected

◆ polylineProxy

RPolylineProxy * RPolyline::polylineProxy = NULL
staticprivate

Copyright (c) 2011-2018 by Andrew Mustun.

All rights reserved.

This file is part of the QCAD project.

QCAD is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

QCAD is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with QCAD.

◆ startWidths

QList<double> RPolyline::startWidths
protected

◆ vertices

QList<RVector> RPolyline::vertices
protected


Getter function for this property: getVertices

Setter function for this property: setVertices

The documentation for this class was generated from the following files:
